> GPS Hardware > GPS units > GL501MG GPS Tracker

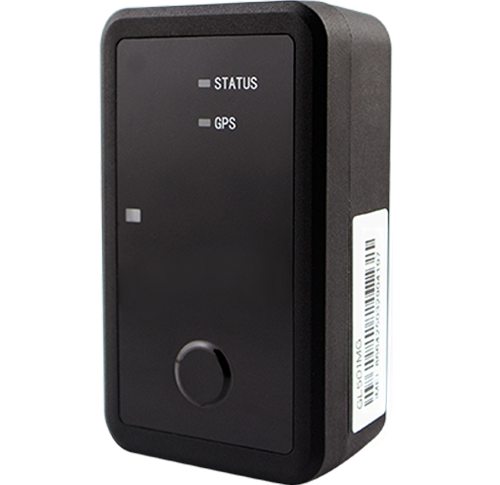

GL501MG GPS Tracker

GL501MG GPS Tracker
GL501MG GPS Tracker
Basic information:
The GL501MG is an updated version of our successful GL500MG adding Qi wireless charging and BLE. Our customers love the battery-powered GL500MG but still wanted a rechargeable version for certain scenarios. We designed this version without impacting the waterproof and robust enclosure. Adding BLE allows connectivity to diverse wireless accessories. With internal temperature and light sensors, the product is ideal for a wide range of environmental monitoring applications such as cold chain logistics, warehouse management, cargo trucking, high-value static asset monitoring and more.
Order code:GL501MG GPS Tracker
Internal code:E001-9480

Availability:
on order

Quantity:
Add to cart

GL501MG

The GL501MG is an updated version of our successful GL500MG adding Qi wireless charging and BLE. Our customers love the battery-powered GL500MG but still wanted a rechargeable version for certain scenarios. We designed this version without impacting the waterproof and robust enclosure. Adding BLE allows connectivity to diverse wireless accessories. With internal temperature and light sensors, the product is ideal for a wide range of environmental monitoring applications such as cold chain logistics, warehouse management, cargo trucking, high-value static asset monitoring and more.

Properties

  • Global LTE Cat M1/NB1 with 2G fallback using unique antenna solution
  • Up to 1 year standby time
  • Supports wireless charging
  • Waterproof, compliant to IP67
  • Rapid and flexible installation
  • Ideal for asset monitoring and lot management

Specification

LTE Specifications

Operating Band Cat M1/Cat NB1:
LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28
Data Transmission eMTC (DL) 375 Kbps
eMTC (UL) 375 Kbps
NB1(DL) 32 Kbps
NB1 (UL) 70 Kbps

EGPRS Specifications

Frequency EGPRS 850 / 900 / 1800 / 1900 MHz
Data Transmission GPRS multi-slot class 33 (33 by default)
EDGE multi-slot class 33 (33 by default)

GNSS Specifications

GNSS Type u-blox All-in-One GNSS receiver
Sensitivity Autonomous: -147 dBm
Hot start: -156 dBm
Reacquisition: -160 dBm
Tracking: -162 dBm
Position Accuracy (CEP) Autonomous: < 2.5m
TTFF (Open Sky) Cold start: 27s average
Warm start: 27s average
Hot start: 1s average

General Specifications

Dimensions 87 × 51 × 30mm
3.43’’(L) × 2.01’’(W) × 1.18’’(H)
87 × 51 × 33.5mm
3.43’’(L) × 2.01’’(W) × 1.32’’(H) (magnetic case mounting version)
Weight 150g (5.29oz)
170g (6.0oz) (magnet-mounted version)
Backup Battery Li-Polymer 3.7V/2400mAh
Standby Time Standby current: < 10 µA
1 report per day: 1 year
Wireless Charger Specifications Input：5V/1A wireless charging
Limited Liability Notice：Using unapproved chargers with Queclink products may cause harm to the product and may result in battery failure, even risk of severe heat,
and burst. Queclink, its distributors, and affiliates shall not bare the burden of responsibility for any damages as described here above. By using
a third-party charger, you assume all responsibility for any risk, harm, and or injury.
Charging Method 5V/1A wireless charging
Waterproof IP67 compliant
Operating Temperature -20℃ ~ +60℃
BLE Support BLE 4.2 protocol
Internal Temperature Sensor For temperature monitoring
Accuracy: ±1℃
Internal Light Sensor For tamper detection
Internal Motor For vibration feedback after successful operation of function button
Magnetic Mounting Case (Optional) For easy installation on metal surface

Interfaces

Function Button Used for power on/off and working status checking
LTE Antenna Internal only
GNSS Antenna Internal only
BLE Antenna Internal only
LED Indicators GNSS, CEL

Air Interface Protocol

Command Set @Track protocol command
Transmit Protocol TCP, UDP, SMS
Working Modes Power saving mode for long standby time
Continuous mode for emergency tracking
Scheduled Timing Report Report position and status at preset time intervals
Geo-fences Support up to 20 internal geo-fence regions
Low Power Alarm Alarm when internal battery is low
Wakeup Report Report when the device wakes up
Motion Detection Motion detection based on internal 3-axis accelerometer
Reporting Frequency Adjustment Intelligent adjustment of reporting frequency
