> LoRaWAN IoT > UC501 - LoRaWAN® Controller

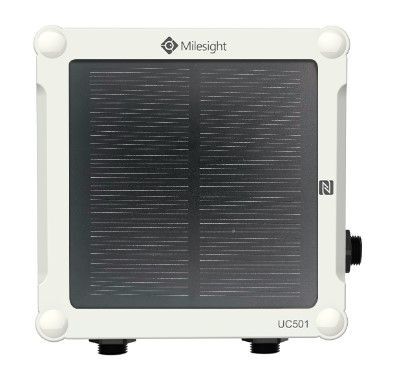

UC501 - LoRaWAN® Controller

UC501 - LoRaWAN® Controller
UC501 - LoRaWAN® Controller
UC501 - LoRaWAN® Controller
UC501 - LoRaWAN® Controller
Basic information:
Feature-Rich SensorHub for Connecting Sensors • Rechargeable, 2 × 2550 mAh battery with solar panel (5 V, 1.6 W)
Order code:UC501-868M
Internal code:E002-1009

Availability:
on order

Quantity:
Add to cart

UC501 - LoRaWAN® Controller

Feature-Rich SensorHub for Connecting Sensors

  • IP67 Rating
  • Rich Industrial Interfaces
  • Flexible Power Options
  • NFC for Configuring

Rechargeable, 2 × 2550 mAh battery with solar panel (5 V, 1.6 W)

IP67 Waterproof

The UC500 LoRaWAN® controller equipped with IP67 rated enclosure to satisfy long time operation in all-weather environment



LoRaWAN®-Based

  • Compatible with industry standard LoRaWAN® gateways
  • With a range of up to 15 km in rural areas and 2 km in urban areas

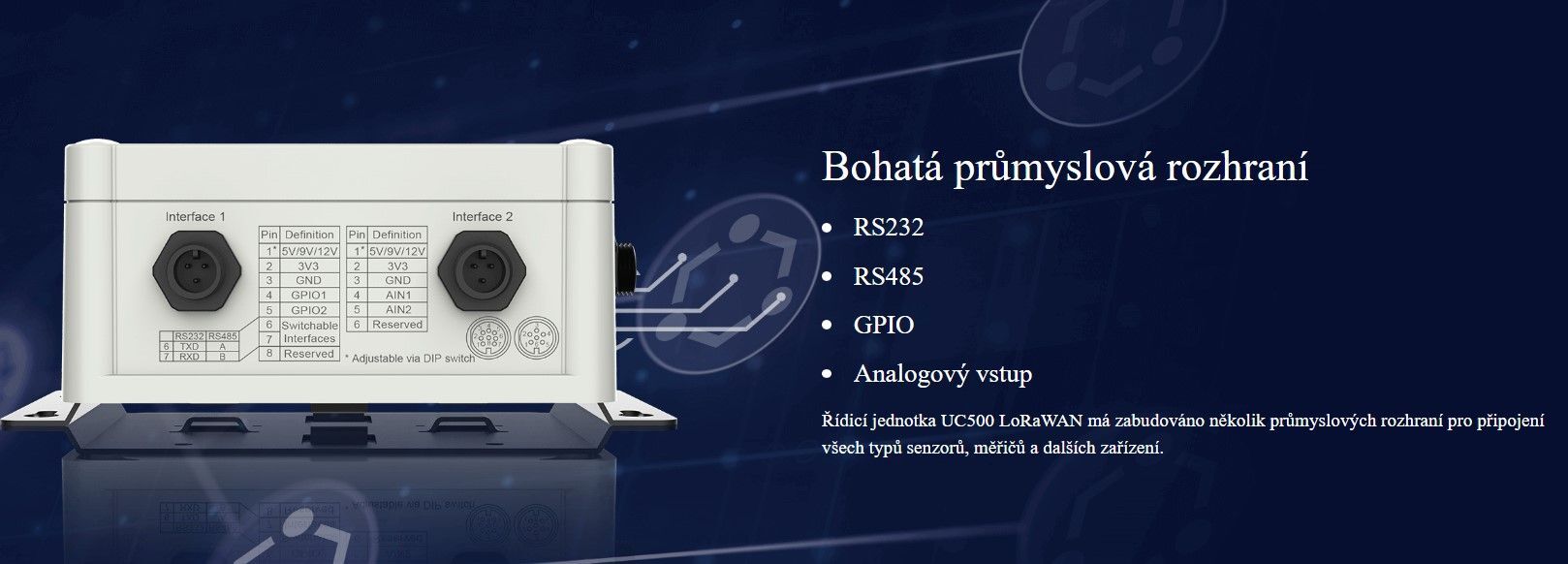

Rich Industrial Interfaces

  • RS232
  • RS485
  • GPIO
  • Analog Input

The UC500 LoRaWAN® controller built-in multiple industrial interfaces to connect all types of sensors, meters and other appliances.

Specification

Model UC501 UC502
Frequency CN470/IN865/EU868/AU915/US915/KR920/AS923
Interface 1 2 × GPIO 1 × RS485/RS232 switchable 1 × 3.3 V output 1 × 5/9/12 V output switchable
Interface 2 2 × analog input 1 × 3.3 V output 1 × 5/9/12 V output switchable
Dimension 120.1 × 120.1 × 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Supply Rechargeable 5100 mAh battery with solar panel Non-rechargeable Built-in 19000 mAh Li-SOCl2 battery
