> Attendance system > SYSA21

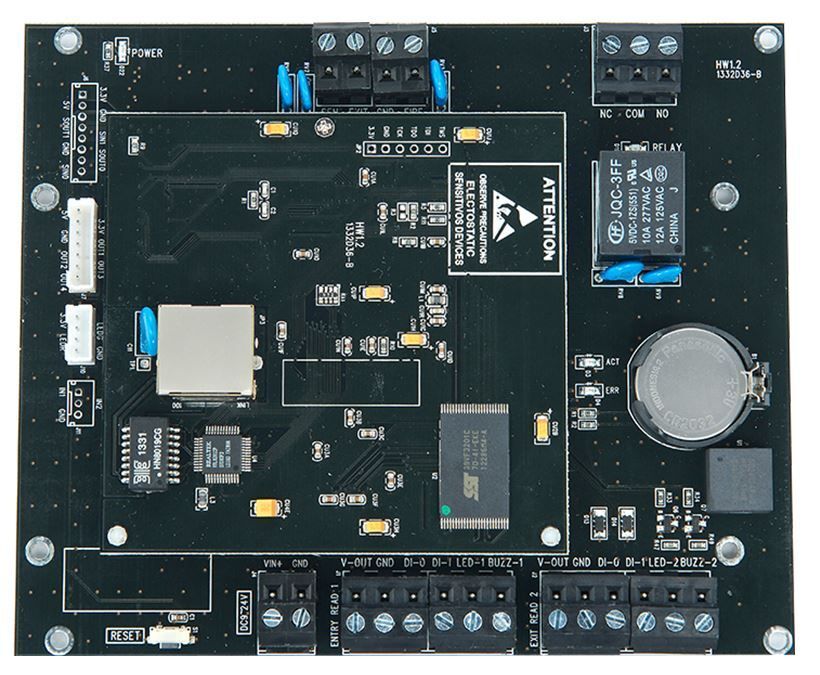

SYSA21

SYSA21
SYSA21
SYSA21
Basic information:
TCP/IP access module to control access for 1 door / bidirectionally /. 2 Wiegand inputs for RFID reader connection, exit button, door monitoring input, alarm input and NO/NC relay for a lock controlling.
Internal code:E001-4685

Availability:
on order

Quantity:
Add to cart

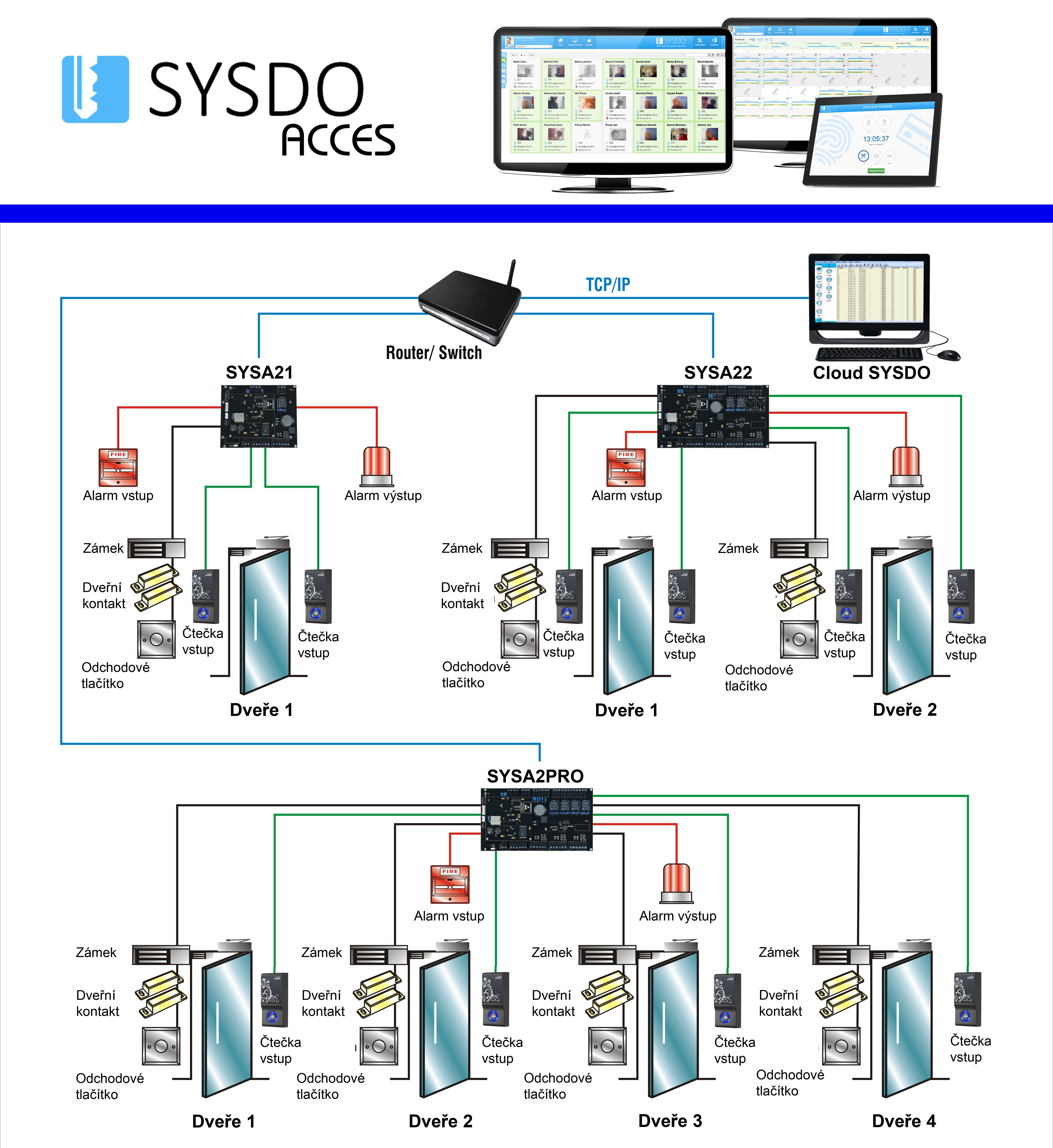

Model SYSA21 SYSA22 SYSA2PRO
Door capacity
 1 2 4
Bidirectional door control YES YES N0
Wiegand input
 2 4 4
Exit button
 1 2 4
Door monitoring input 1 2 4
Alarm input
 1 2 4
Memory of events
 60000
Time zone
 120
Groups of users
 250
TCP/IP port 1x RJ45
Buzzer and LED control
 ANO
Power supply 9 ∼ 24VDC
Current consumption 180mA 220mA 300mA
Recommended current for power supply min. 1A min. 1,5A min. 2A
Relay output
 1x
10A 260VAC/28VDC 		 2x
10A 260VAC/28VDC 		  4x
10A 260VAC/28VDC
Wiegand output
 WG 26 ∼ 66 bit
Operating temperature
  0 ∼ 55 ºC
PCB Dimensions
 138 x 114 x 27mm 200 x 114 x 27mm
