Basic information:
3G • 4G • GPS • WiFi • PoE • 1 x WAN • 4xLAN
Order code:UR35-L04EU-G-P-W
Internal code:E002-0983

Availability:
on order

Quantity:
Add to cart

UR35-L04EU-G-P-W - Industrial Cellular Router (3G, 4G, GPS, WiFi, PoE, 1xWAN, 4xLAN)

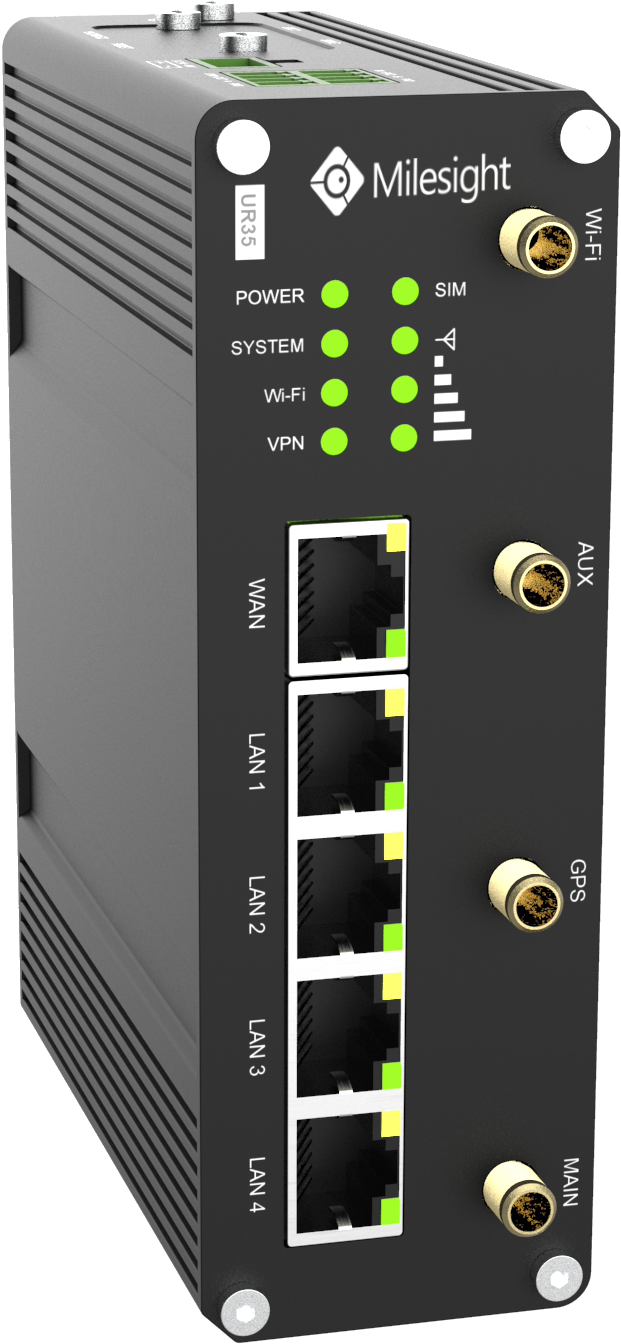

The UR35 is an industrial-grade 4G LTE cellular router
with a 5-port Ethernet interface for mission-critical communications.
Featured with multiple network protocols and VPN tunnels,
UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.
To fulfill the market demand, UR35 is built with hardened enclosure, industrial components,
and wide operation range from -40°C to 70°C for harsh environments.
Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity,
it is also equipped with 4 PSE PoE ports, serial ports, digital I/O for field communications.

UR35

  • Hardened & Rugged Enclosure
  • 4 PoE PSE Ethernet Ports
  • Supports Wi-Fi Client and AP Mode
  • 1 RS232 and 1 RS485 Serial Port
  • 1 Digital Input and 1 Digital Output
  • OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
  • Wide Operating Temp Range and Input Voltage

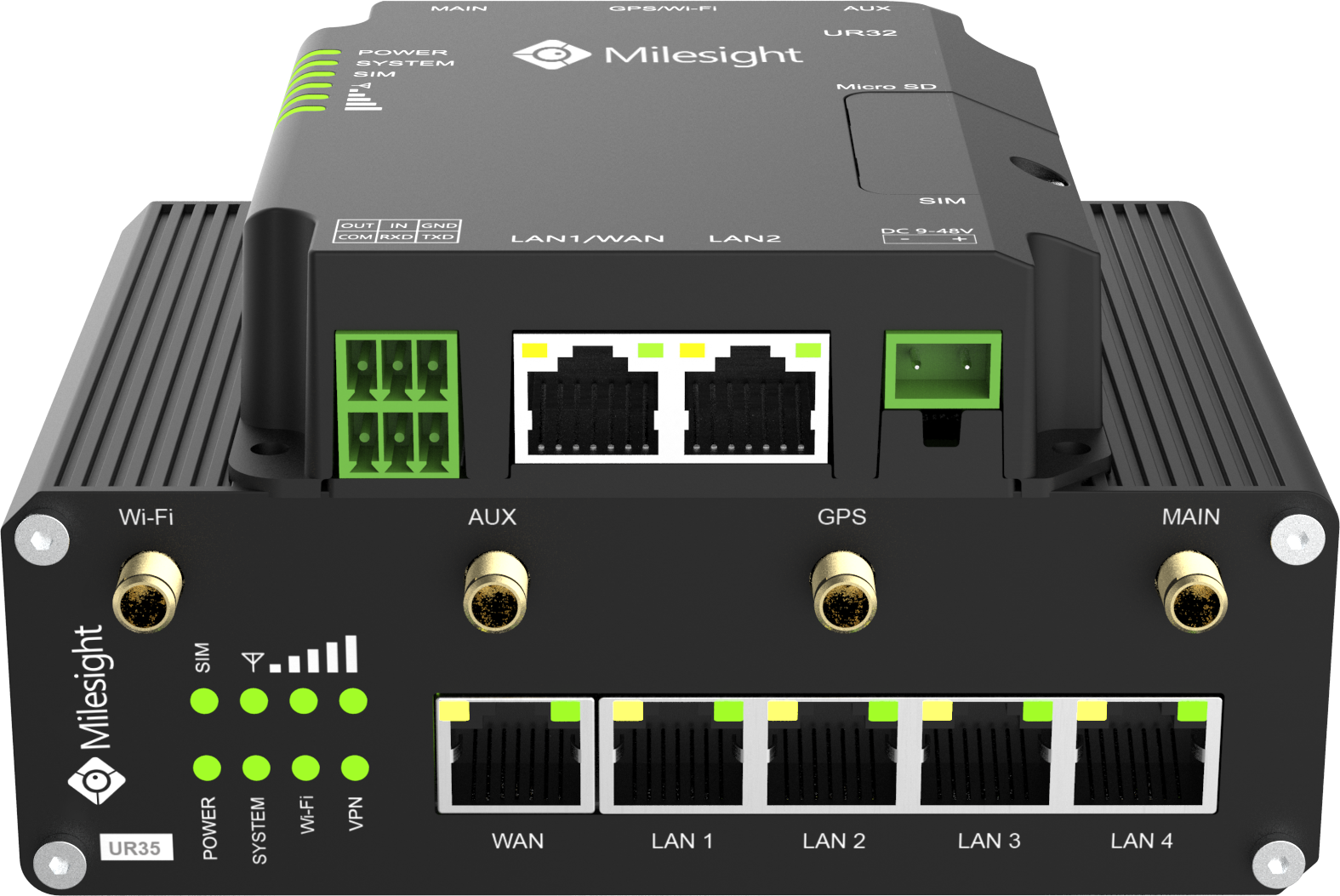

Specification / model comparison (UR32 vs. UR35)

UR32 UR35
Capabilities CPU 528 MHz, 32-bit ARM Cortex-A7
Flash 128 MB
Memory 128 MB DDR3
Built-in Watchdog
GPS GPS + GLONASS
Micro SD Supports micro SD card up to 128 GB
Interfaces SIM Slots 2
Ethernet Ports 2 × 10/100 Mbps 5 × 10/100 Mbps
Serial Ports 1 x RS232 (optional RS485) 1 x RS232 +1 x RS485  or 2 x RS485
DI/DO 1 × DI + 1 × DO
Antenna Connectors 2 x Cellular Connectors 1 x GPS/Wi-Fi Connector 2 x Cellular Connectors 1 x Wi-Fi Connectors 1 x GPS Connector
Network Network Protocols IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA RADIUS, TACACS+, LDAP, Local Authentication
Firewall Anti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding
Wi-Fi (Optional) IEEE 802.11b/g/n
Serial Port Transparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
Reliability VRRP, WAN Fail-over, Dual SIM Backup
VPN OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Maintenance Management Web, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel Authority Multiple Levels of User Authority
Hardware Power Input 9-48 VDC
Power Output (Optional) 2 × 802.3af/at PoE PSE 4 × 802.3af/at PoE PSE
Ingress Protection IP30
Housing & Weight Metal, 271g (0.60 lb) Metal, 481g (1.06 lb)
Dimensions 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) 135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in)
Mounting Desktop, Wall or DIN Rail Mounting
Others Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Certifications RoHS, CE, FCC, AT&T (UR32)
Frequency Band*
E
AF
AU
LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 3G: B1/B5/B8 GSM: B3/B8
LTE: B2/B4/B5/B12/B13/B14/B66/B71 3G: B2/B4/B5
LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G: B1/B2/B5/B8 GSM: B2/B3/B5/B8
