> LoRaWAN IoT > UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)

UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)

UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)
UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)
UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)
UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)
UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)
Basic information:
3G & 4G router • 1x WAN • 1x LAN • PoE • MicroSD
Order code:UR32L-L04EU-P
Internal code:E002-1076

Availability:
on order

Quantity:
Add to cart

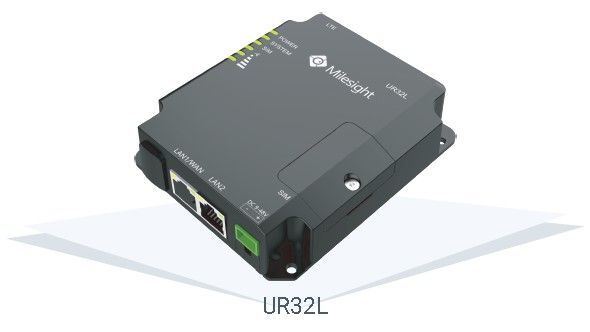

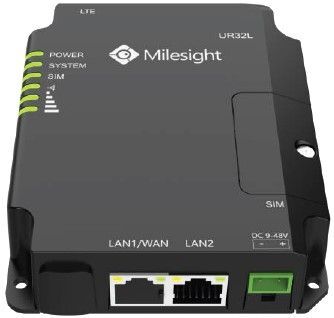

UR32L-L04EU-P - Lite Industrial Cellular Router (3G & 4G, PoE)

Heavy Cast Aluminum Casing

Industrial-grade Design

-40°C to 70°C Operating Temperature

Fit Into Limited Space with a Compact Size

Specification

Hardware System CPU ARM Cortex-A7, 528 MHz
Memory 128 MB DDR3 RAM and 128MB Flash
Cellular Interface Antenna Connector 1 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots 1(Mini SIM-2FF)
Ethernet Interface Numbers 1 × WAN + 1 × LAN or 2 × LAN
Property 1(Mini SIM-2FF)
Mode Full or half-duplex (Auto-Sensing)
PoE 2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Software Network Protocols IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, etc.
VPN DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
Management Web, CLI, SMS, On-demand dial-up, SNMP v1/v2/v3, DeviceHub
AAA Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority Multiple Levels of User Authority
Reliability VRRP, WAN Failover
Power Supply Power Connector 2-pin 5.08 mm Terminal Block
Input Voltage 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Physical Characteristics Ingress Protection IP30
Housing Metal

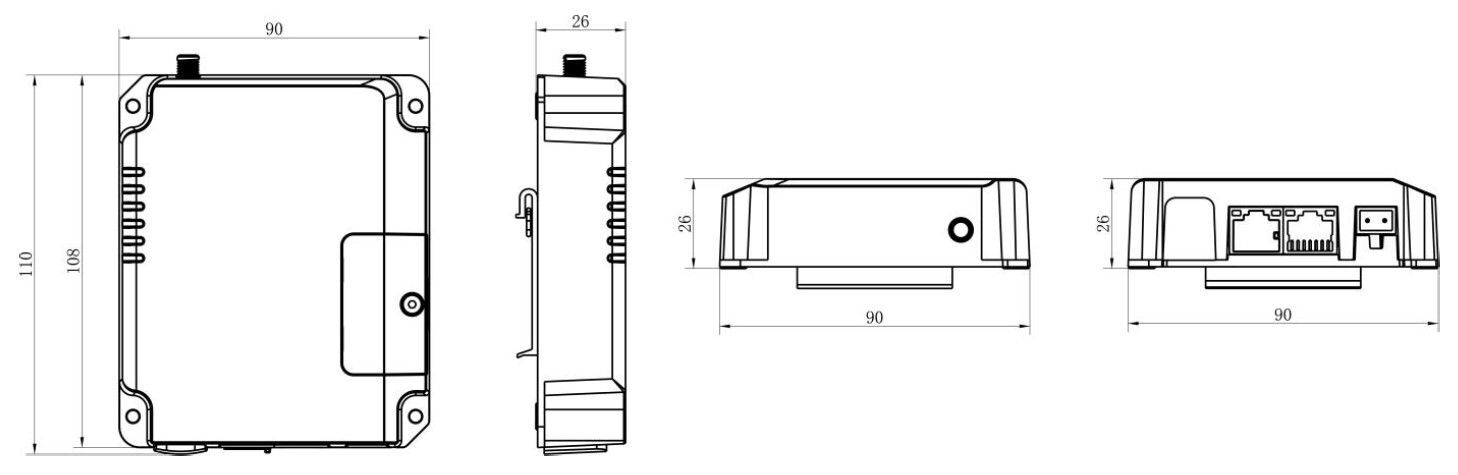

Dimension 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation Desktop, Wall or DIN Rail Mounting
Environmental Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
