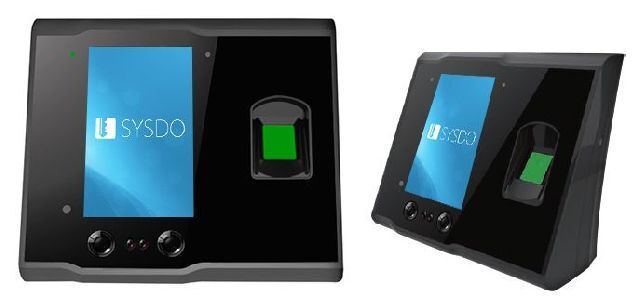

SYSFX9 SYSDO attendance and access terminal
SYSF203TPD Biometric reader, dual ID format for Emmarine 125kHz and Mifare 125kHz cards
Special offer
  • SYSF203TP USED SYSDO READER
    SYSF203TP USED SYSDO READER
    SYSF203TP Biometrická čtečka i pro karty EMmarine 125kHz, Wiegand 34/26bit.

SYSF203TP USED SYSDO READER
SYSF203TP Biometrická čtečka i pro karty EMmarine 125kHz, Wiegand 34/26bit.
> Attendance system > SYSA2PRO PCB

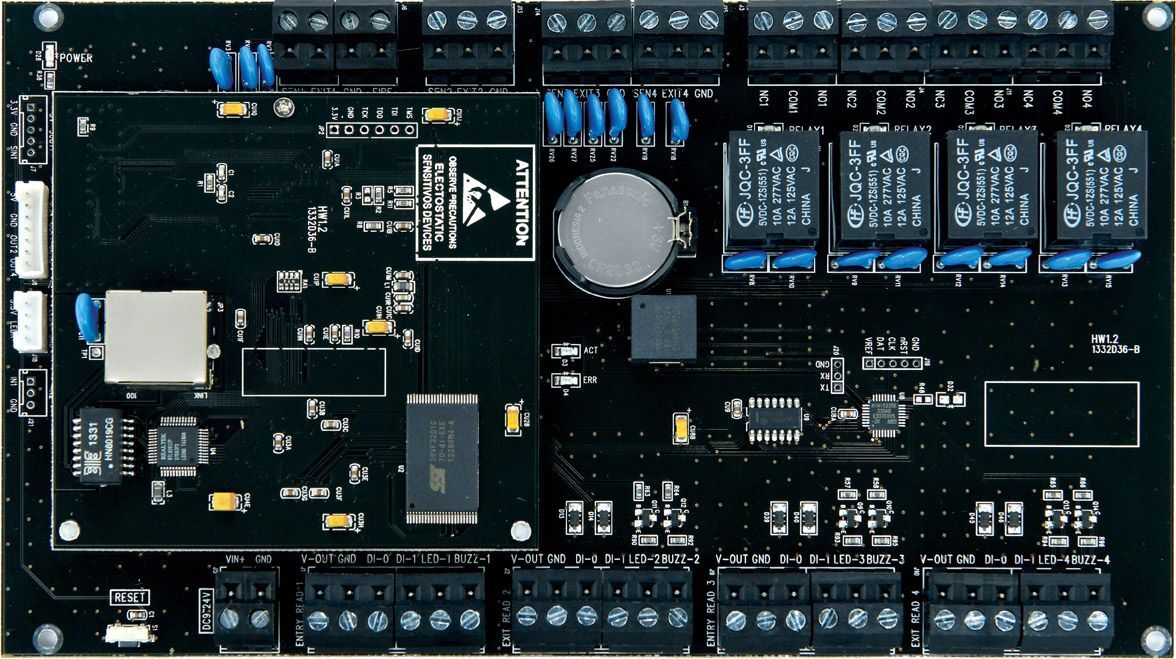

SYSA2PRO PCB

SYSA2PRO PCB
SYSA2PRO PCB
SYSA2PRO PCB
Basic information:
TCP/IP access module to control access for up to 4 doors. 4 Wiegand inputs for RFID reader connection, 4 exit buttons, 4 doors monitoring inputs, 4 alarm inputs and 4 NO/NC relays for locks controlling.
Internal code:E001-4687

Availability:
on order

Quantity:
Add to cart
Model SYSA21 SYSA22 SYSA2PRO
Door capacity
1 2 4
Bidirectional door control YES YES N0
Wiegand input
2 4 4
Exit button
1 2 4
Door monitoring input 1 2 4
Alarm input
1 2 4
Memory of events
60000
Time zone
120
Groups of users
250
TCP/IP port 1x RJ45
Buzzer and LED control
YES
Power supply 9 ∼ 24VDC
Current consumption 180mA 220mA 300mA
Recommended current for power supply min. 1A min. 1,5A min. 2A
Relay output
1x
10A 260VAC/28VDC
2x
10A 260VAC/28VDC
 4x
10A 260VAC/28VDC
Wiegand output
WG 26 ∼ 66 bit
Operating temperature
 0 ∼ 55 ºC
PCB Dimensions
138 x 114 x 27mm 200 x 114 x 27mm

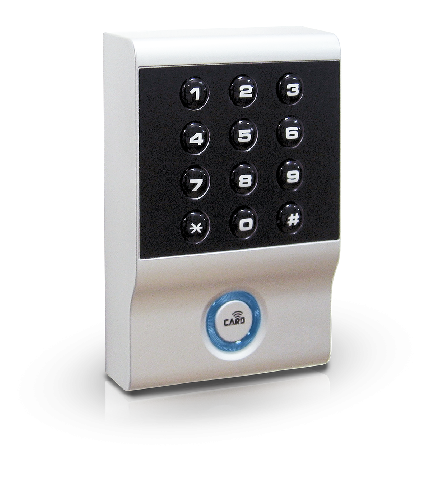

TCP/IP Access reader for access and entry control. Verification via RFID card or code. Emarine cards up to 20 000 cards.
Biometrical terminal SYSDO for attendance and access control fully equipped for recording and access control persons using facial recognition, biometric...

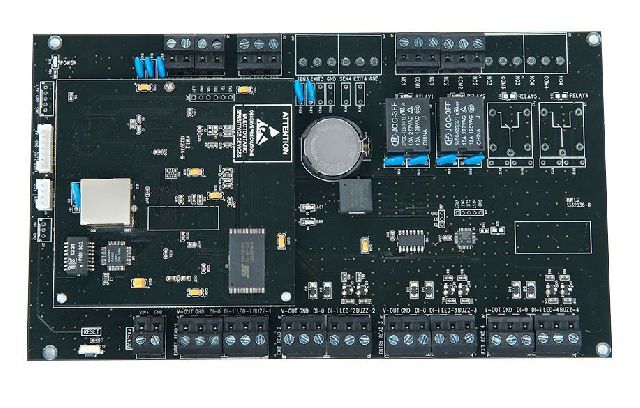

TCP/IP access module to control access for 2 doors / bidirectionally /. 2 Wiegand inputs for RFID reader connection, 2 exit buttons, 2 doors monitoring...
