> GPS Hardware > GPS units > GL419U GPS LTE tracker

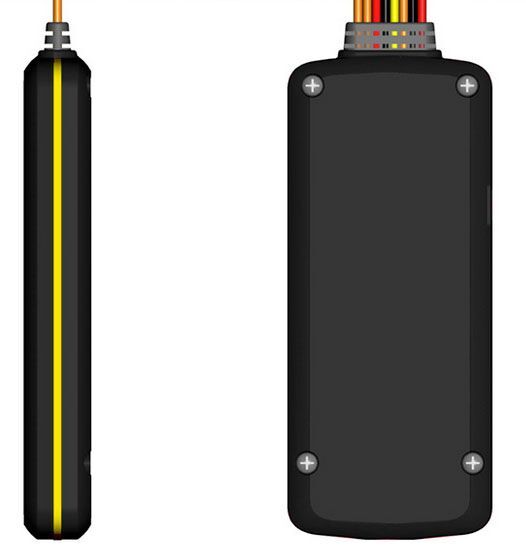

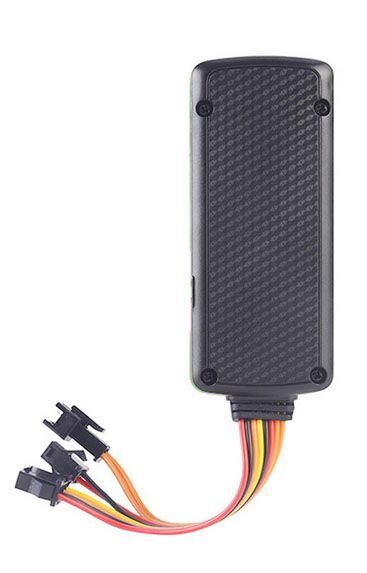

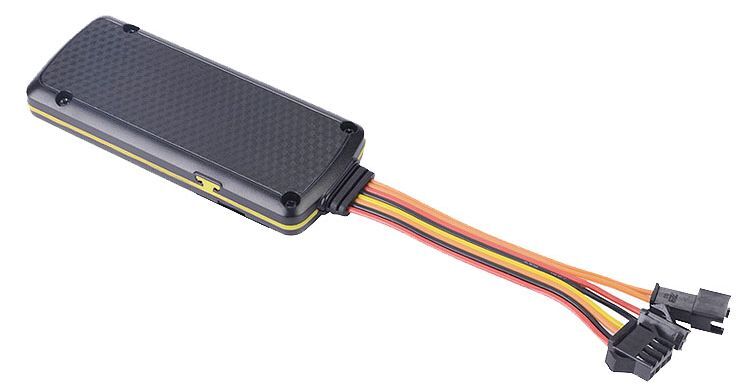

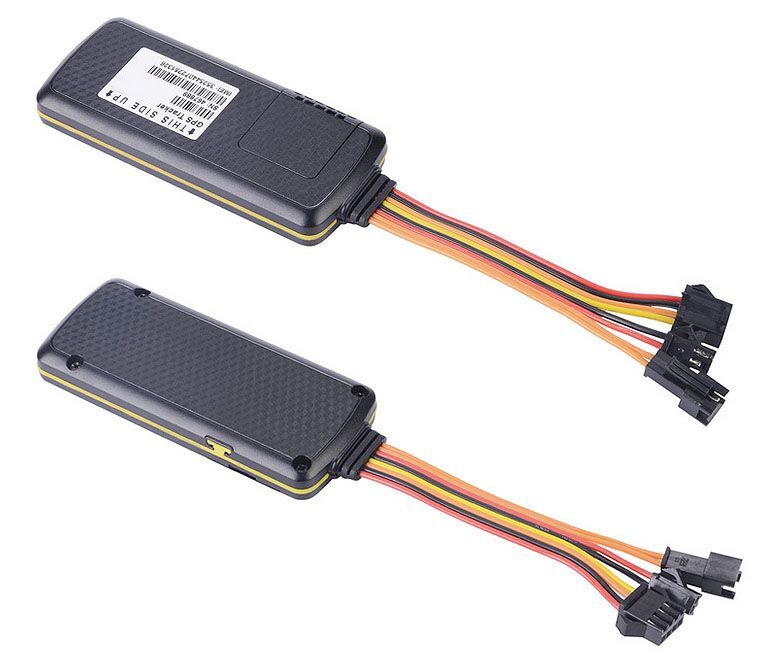

GL419U GPS LTE tracker

Basic information:
4G LTE FDD GPS unit for fixed installation, internal GSM/WCDMA/LTE and GPS ceramic antenna, backup 140mAh battery, high power supply range 9 to 72VDC, dimensions 89 x 37 x 12mm, IP65 protection.
Order code:GL419U LTE GPS tracker
Internal code:E001-8311

Availability:
on order

Quantity:
Add to cart

GL419U 4G LTE GPS unit

GPS tracker designed for fixed installation in means of transport, including e-bikes and e-scooters with a wide range of supply voltage from 8 to 72 VDC. It contains two inputs and one programmable output. Programmable logic inputs can be used to monitor ignition and SOS buttons or private/duty drive switches. The programmable output can be used for various control and/or device blocking.

The GPS unit contains a GPS receiver with an external GPS antenna and a GSM/GPRS/SMS four-band communication module in the 850/900/1800/1900 MHz band. The GSM module supports TCP/IP, UDP and SMS communication with support for online communication with the server for evaluating recorded information about the position and status of programmable inputs.

The GPS unit offers more than real-time motion tracking, but also provides information from a built-in 3-axis accelerometer that enables motion detection and extends battery life with sophisticated power management algorithms. The GPS unit is systemically fully integrated into the WEB application Motomon with support for all location reports, inputs, panic alarm, driver behavior, low battery status, planned routes and many other useful functions.

In case of GSM signal loss, when the unit is unable to send data to the server (e.g. crossing borders without a roaming SIM card), it can store up to 3000 records (approx. 500km) in the internal memory. In case of memory overflow, older data is replaced by newer data until the unit is able to transfer data to the server.

Features

  • 4G LTE full network support (fallback to 3G/2G network), support 4G LTE/WCDMA/UMTS
  • Certifications and approvals (only for module): GCF (Global),CE, PTCRB, RCM, FCC,IC, JATE, Anatel, FAC, CCC etc.
  • GPIO extension, can be extended to Serial Port
  • Possessing a certain Waterproof IP65 and dustproof performance
  • Intelligent real-time tracking, and report the location
  • GPS/LBSdual positioning, and support A-GPS
  • Adopting the new Eelinktech Protocol 2.0 (TCP), the firmware can be upgraded remotely (OTA)
  • With PC web page, mobile APP query, SMS inquiry and remote settings
  • Vehicle trip history and mileage data on web server
  • IBUTTON probe can be connected to external IBUTTON interface for ID confirm
  • Logging Out of Range: Your GPS data will be logged to the 4B Memory inside the tracker when the vehicle is out of range or there is no signal.

Functions

  • Vehicle towing / Movement alarm
  • Over speed alarm and reporting
  • Backup battery low power alarm
  • Car battery low power alarm
  • High temperature alarm
  • Power saving / sleep mode
  • Mileage report
  • Alarm Notification
  • ACC Detection : ACC switch status report alarm
  • Remote cut off fuel / ignition, Over speed Fuel Shutdown (New)
  • SOS alarm reporting
  • ACC switch alarm
  • Geo-Fence alarm and reporting
  • Power-off alarm
  • External power cut off alarm



Specification

Color

Black

Material

UL Lanxess PA6 Durethan BKV15+

GPS Chip

UBLOX GPS, GNASS Chip

Antenna

LTE Antenna Internal,
GPS Antenna Internal

GPS Positioning Accuracy

5m-15m (Depending on GPS Signal)

LBS Positioning Accuracy

~200m (Depending on density of base stations)

GPS Frequency

L1, 1575.42MHz C/A code

Network

LTE/FDD/TDD, UMTS,GSM, SMS

LTE

FDD    B1/B2/B3/B4/B5/B7/B8/B28     Max 10Mbps (DL)/Max 5Mbps (UL)
TDD    B40    Max 8.96Mbps (DL)/Max 3.1Mbps (UL)

UMTS:

WCDMA
DC-HSDPA             B1/ B2/ B5/ B8
HSUPA

GSM

EDGE (B2/ B3/ B5/ B8) 850, 900, 1800 and 1900MHz
GPRS

SMS

Text-data, PDU(optional)

Transmit Protocol

Embedded TCP/IP, UDP/IP, PPP, HTTP/NTP/QMI etc.

Net Weight

32g

GPRS

Class 12, TCP/IP

LED Indicator

GPS-Blue; GSM-Red

Flash Memory

4MB for application and data storage

Hot/Warm/Cold Start

<3x, <15s, <60s

Built-in Battery

Embedded 140mAh battery for emergency alarm when removing main power.

Standby

4 Hours

I/O

3 Digital Inputs
2 Digital Outputs
1 Analog Input
1 Microphone Socket
1 Speaker Socket
1- Wire Interface

Motion sensor:

Embedded 3D motion sensor
Detecting moving status for saving consumption.

Optional Accessories

Replay
SOS Button
Microphone
Speaker
IBUTTON probe

Work Current

<30 mA

Standby Current

<15 uA

Charger

5VDC/1A

Waterproof Level

IP65

Dimensions (mm)

89mm x 37mm x 12mm

Operating Voltage

Vin: 9.0 – 72.0V DC

Environment Temperature

-20 to 75° C Operation
-50 to +100° C Storage

Environment Humidity

20% to 90% Operation
10% to 95% Storage

ESD:

15KV immune on all user accessible surfaces and ports

Altitude:

-500 to +18,000m

Shock:

25G
