> LoRaWAN IoT > UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway

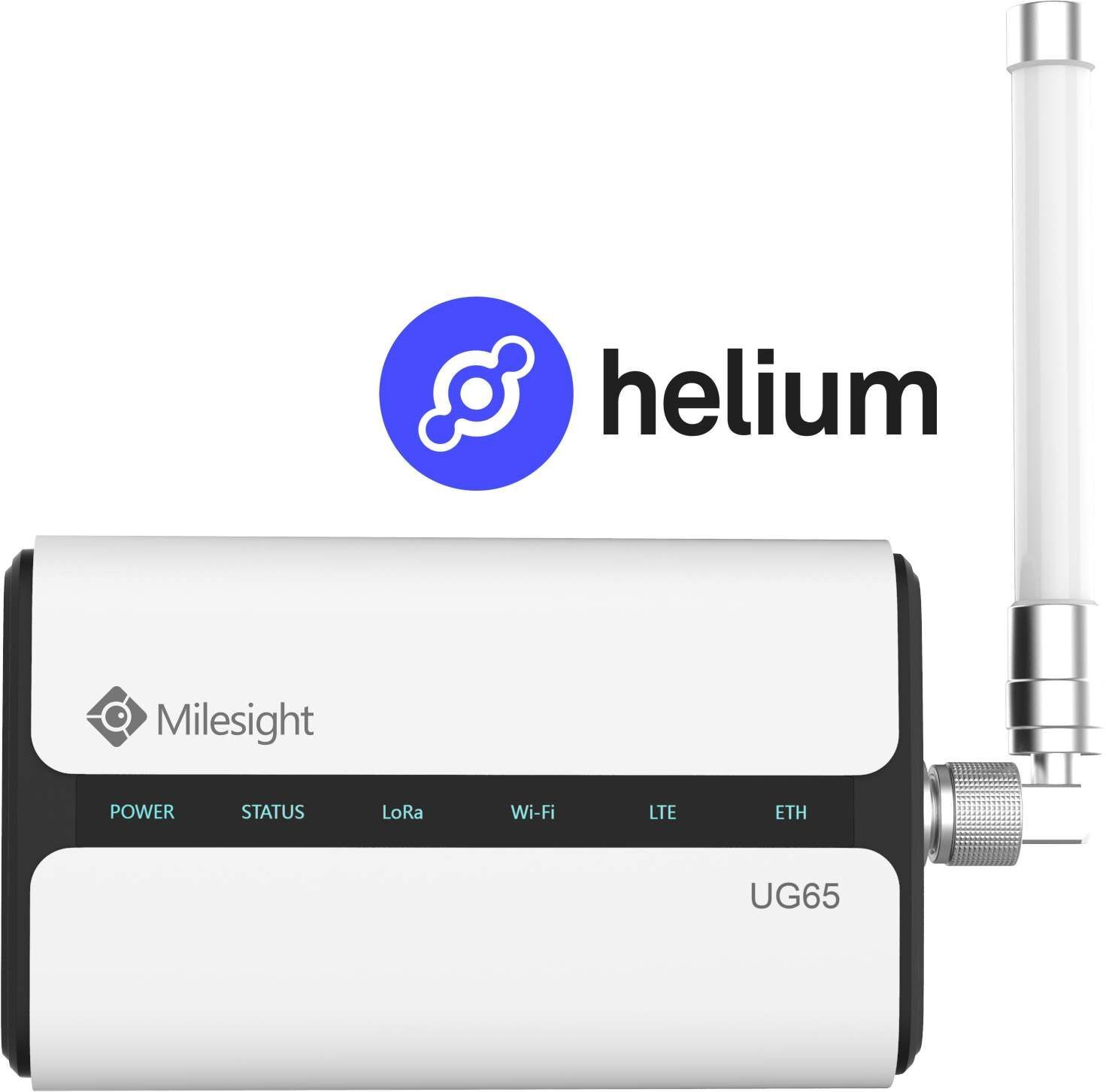

UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway

UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway
UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway
UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway
UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway
UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway
Basic information:
Semi-Industrial LoRaWAN® Gateway • NXP Quad-Core Processor • Semtech SX1302 LoRa Chip • Multiple Backhaul Connectivities • Embedded Network Server • Compatible with Multiple Network Servers • Global LoRaWAN® Frequency Plans • IP65 Rating
Order code:UG65-868M-EA-H32
Internal code:E002-2311

Availability:
on order

Quantity:
Add to cart

UG65-EA-H32 - Semi-Industrial LoRaWAN® Gateway

  • IP65 Rating
  • NXP Quad-Core Processor
  • Semtech SX1302 LoRa Chip
  • Multiple Backhaul Connectivities
  • Embedded Network Server
  • Compatible with Multiple Network Servers
  • Global LoRaWAN® Frequency Plans
  • (CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923)
  • Helium LongFi™

Specification

Model UG65
Hardware System CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
LoRaWAN® Antenna Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Channel 8
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface Port 1 × RJ45 (PoE PD support)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Data Rate Rate 10/100/1000 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi Antenna Fully Integrated and Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional) Antenna Fully Integrated and Internal Antenna
SIM Slot 1
Software Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
Power Supply and Consumption Power Supply 1. DC Jack Connector for 9-24 VDC power supply
2. 1 × 802.3 af PoE input
Consumption ≤ 4.2W
Physical Characteristics Ingress Protection Protection IP65
Dimensions 180 x 110 x 56.5 mm
Mounting Desktop, Wall or Pole Mounting
Others Reset Button 1 × RST
Console Port 1 × Type-C Port
LED Indicators 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Environmental Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
