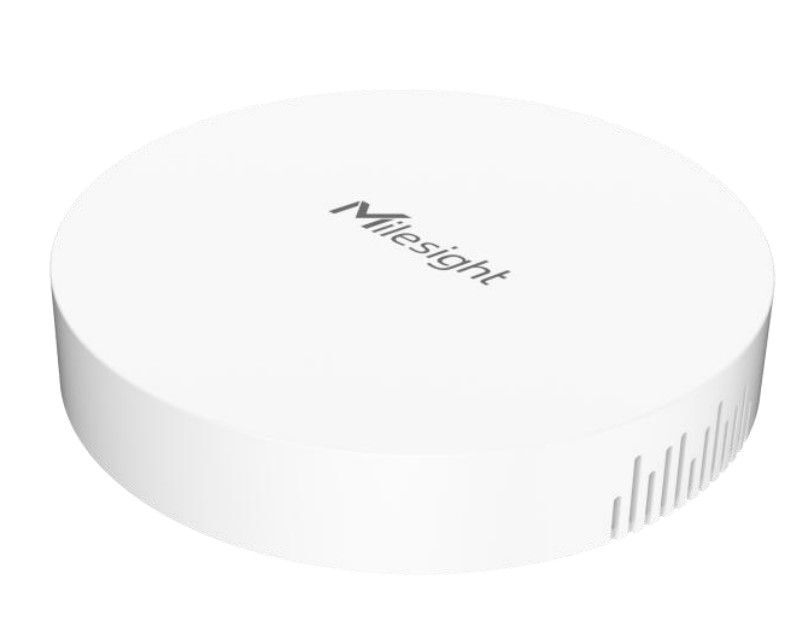

UG63 - Mini LoRaWAN Gateway

UG63 - Mini LoRaWAN Gateway
UG63 - Mini LoRaWAN Gateway
UG63 - Mini LoRaWAN Gateway
Basic information:
Mini LoRaWAN Gateway • Eye-Catching Design • Massive Connectivity • Blind Spot Coverage • Gateway Fleet • Listen Before Talk
Order code:UG63-868M
Internal code:E002-2612

Availability:
on order

Quantity:
Add to cart

UG63 - Mini LoRaWAN Gateway

Eye-Catching Design
Massive Connectivity
Blind Spot Coverage
Gateway Fleet
Listen Before Talk

Eye-Catching Design

Sticking to minimalism, the UG63 Mini LoRaWAN® Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.

Massive Connectivity

Adopting Semtech SX1302 LoRa chip, UG63 supports connection with more than 2000 LoRaWAN® nodes.

  • 8 Channels
  • Full Duplex
  • Global Frequency Plans
  • (CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923)

Blind Spot Coverage

Besides the general features of a LoRaWAN® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways transmitting received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

Specification

Hardware System CPU 528 MHz, ARM Cortex-A7
Memory 256 MB DDR4 RAM
Flash 4 GB eMMC
LoRaWAN Antenna 2 × Internal Antennas
Channel 8 (Half/Full-duplex)
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT Support
Ethernet Interface Port 1 × RJ45 (PoE PD supported)
Physical Layer 10/100 Base-T (IEEE 802.3)
Data Rate 10/100 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Others Reset Button 1 × RST
Console Port 1 × Type-C
LED Indicators 1 × SYS, 1 × LoRa
Built-in Watchdog, RTC, Timer
Software Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform
App Python SDK
Power Supply Power Input 1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port
Physical Characteristics Ingress Protection IP30
Dimensions Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & Material White, PC + ABS
Installation Desktop, Wall or Ceiling Mounting
Environmental Operating Temperature -20°C to +50°C (-4℉ to +122℉)
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-cond

Similar products

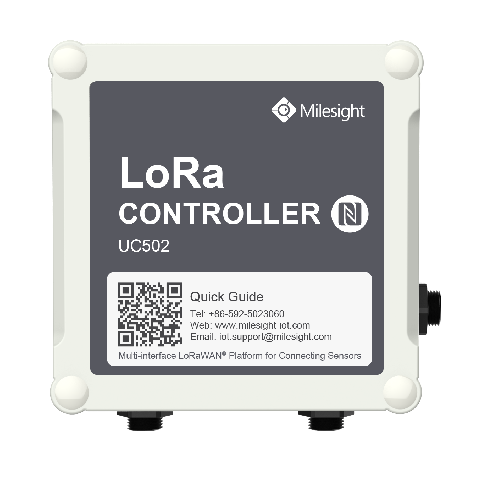

Feature-Rich SensorHub for Connecting Sensors • Non-rechargeable, built-in 19000 mAh replaceable Li-SOCl2 battery
IP67 Rating • 64-bit Quad-Core Processor • New SX1302 LoRa Chip • Built-in Supercapacitor • Multiple Backhaul Connectivities • Internal Antenna Design • ...
3G • 4G • GPS • WiFi • PoE • 1 x WAN • 4xLAN

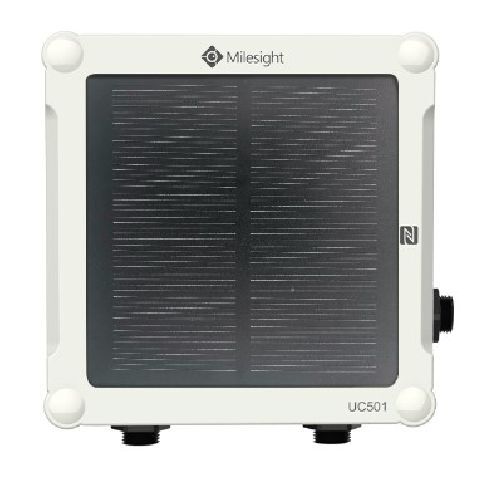

Feature-Rich SensorHub for Connecting Sensors • Rechargeable, 2 × 2550 mAh battery with solar panel (5 V, 1.6 W)
