> GPS Hardware > EMMHUB3Lite

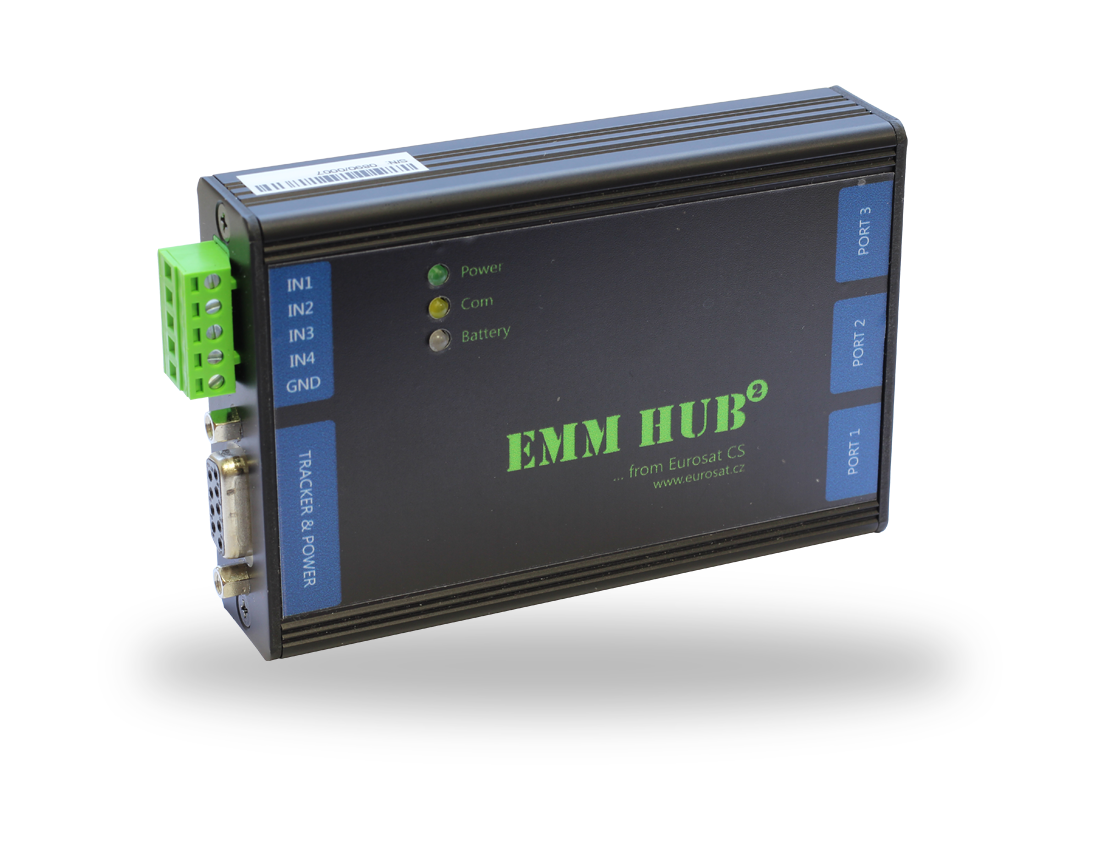

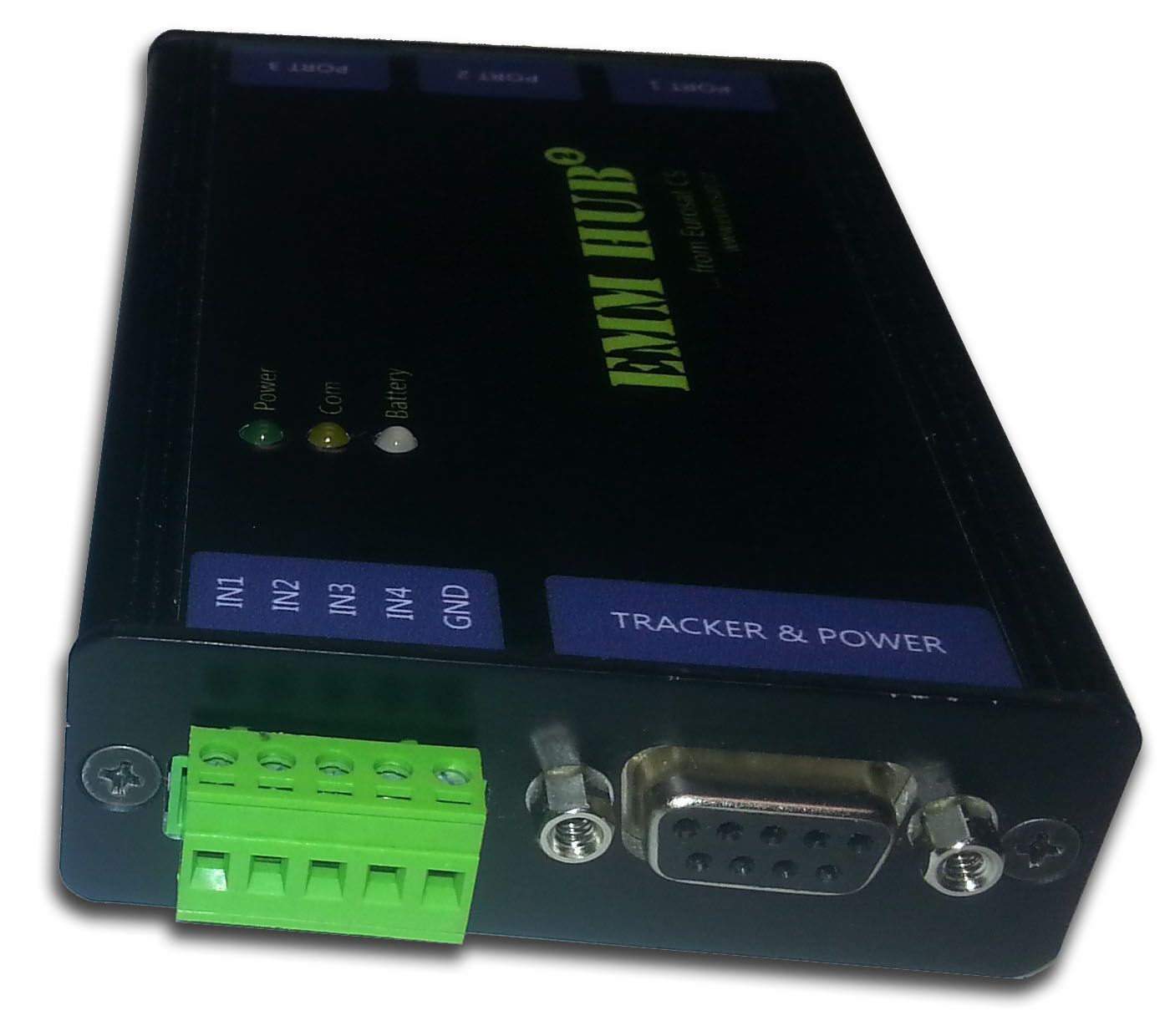

EMMHUB3Lite

EMMHUB3Lite
EMMHUB3Lite
EMMHUB3Lite
EMMHUB3Lite
EMMHUB3Lite
Basic information:
EMMHUB3Lite serves as communication interface for up to 3 probes, power supply 8-36V DC, Version Lite has no standby battery.
Order code:EMMHUB3Lite
Internal code:E000-6700

Availability:
on order

Quantity:
Add to cart

EMM HUB3Lite communication interface for 3 probes



Function description:

• EMMHUB3 receives data from connected EMM probes, CCC containers or other devices and send data periodically via serial link to tracker GL200/ GL300

• Receives commands from back-end server and direct them to corespoding connected device

• Supports real-time clock sychronisation for each connected device

• Supports  SW and HW wake up from sleep mode for tracker

• Monitors up to 4 alarm inputs







Specification:

• Universal power supply with range 8 - 36V DC

• Version Lite has no standby battery

• 5V DC output power supply

• EHB provides connection interface for up to 3 EMM probes to one tracker

• Powers EHB and connected probes

• Four alarm inputs, activated by connection to GND

• Estimated time of service 1 - 6 months

• Voltage measurement

• Temperature range: from -20°C to 60°C, connectors: 3 x RJ45 + CN9

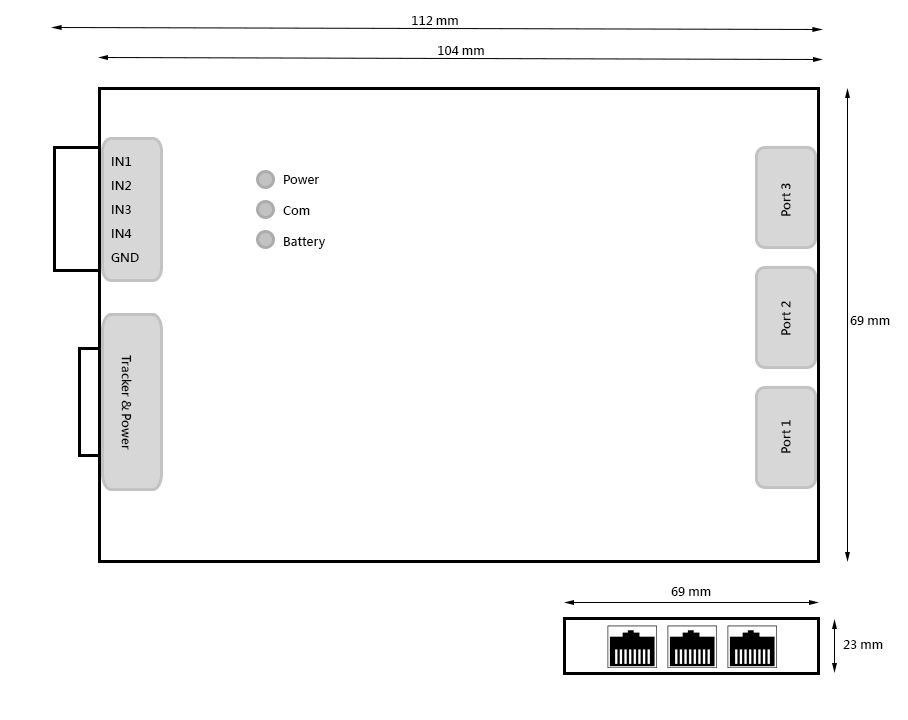

• Dimensions 112x69x23 mm

• Weight 212g



Mechanical design:

Compact module in aluminium anodized case (IP40)







Similar products

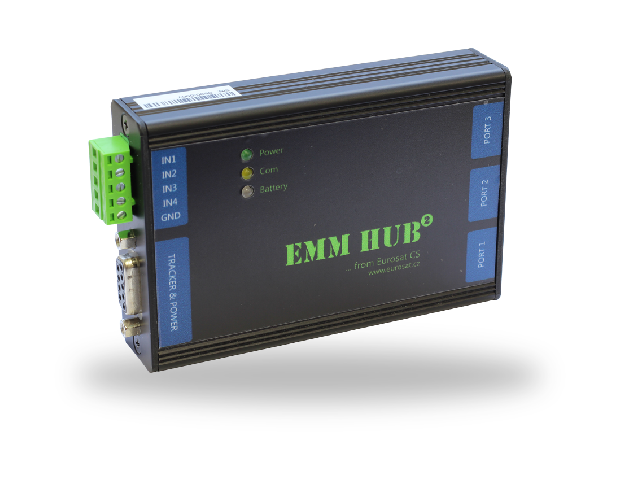

EMMHUB3 serves as communication interface for up to 3 probes, power supply 8-36V DC, contains internal Li-ion battery 3.7V/ 2600mAh
