> LoRaWAN IoT > AM104 - Ambience Monitoring Sensor

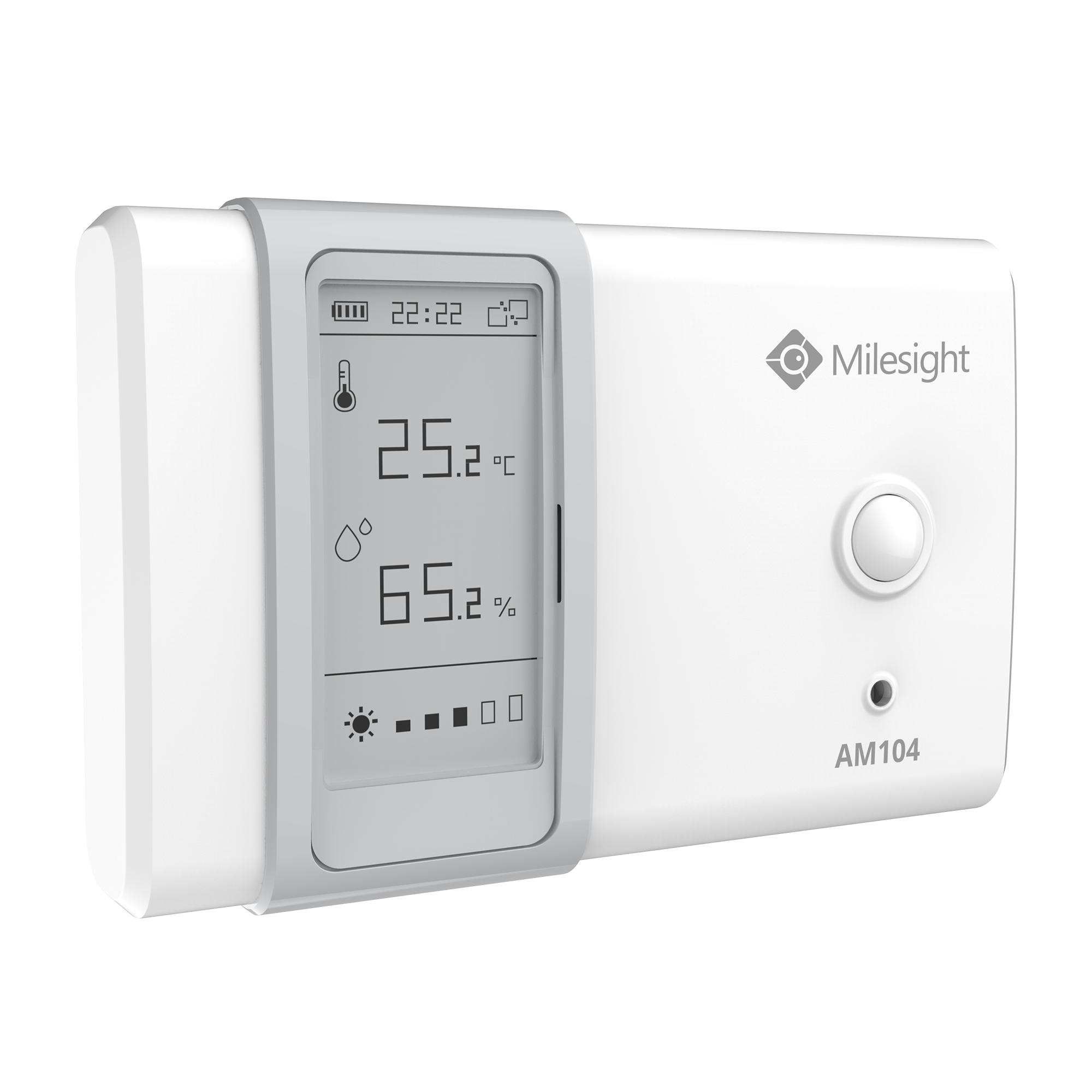

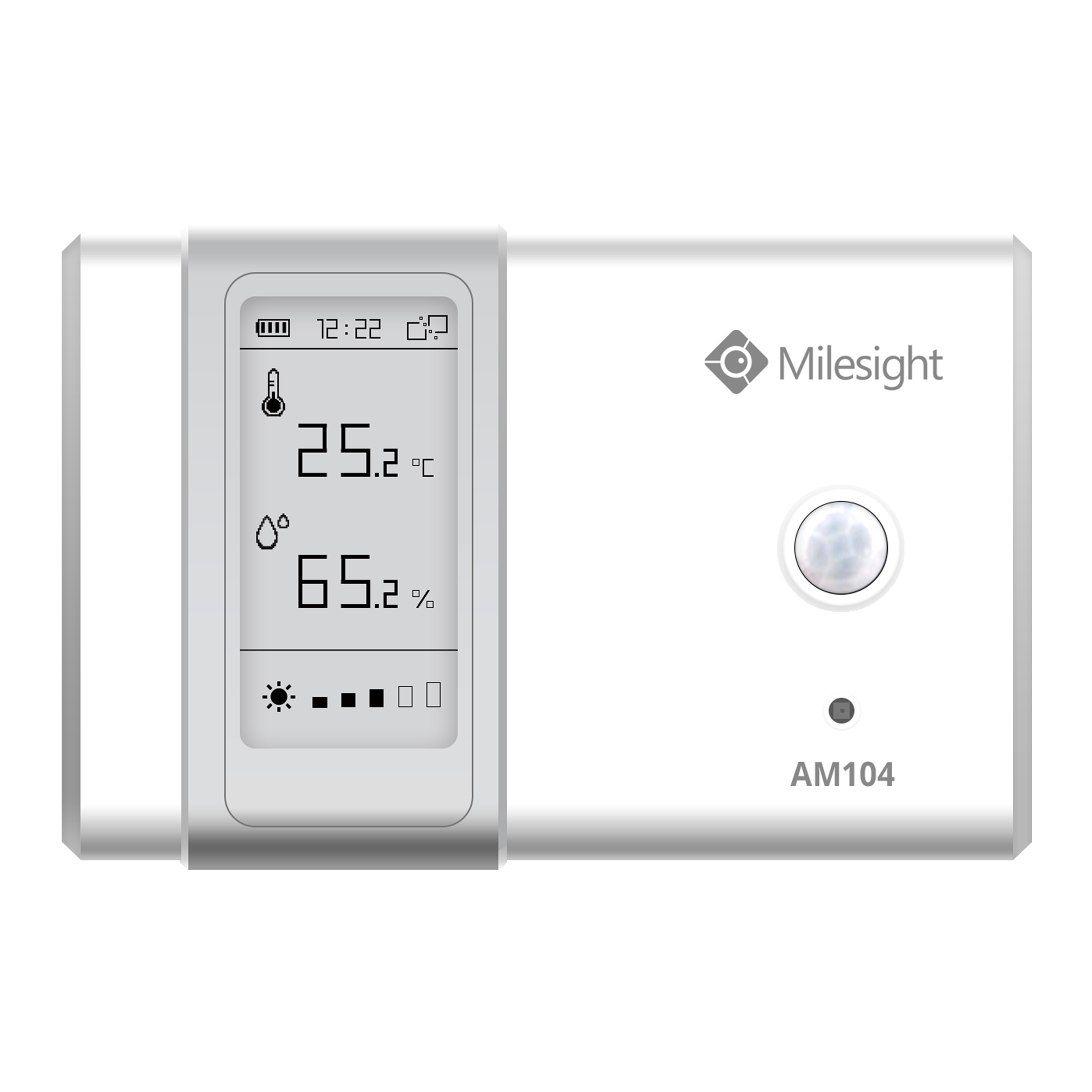

AM104 - Ambience Monitoring Sensor

Basic information:
Activity Level (PIR) • Humidity • Temperature • Light
Order code:AM104-868M
Internal code:E002-0987

Availability:
on order

Quantity:
Add to cart

AM104 - Ambience Monitoring Sensor (915 Mhz)

  • Multiple Sensors in One
  • E-Ink Screen Display
  • Configuration via NFC
  • AA Battery Powered
  • Powered via USB

Sensors

Activity Level (PIR)
Detect the presence of people and monitor the activity level within a certain area

Temperature & Humidity
Monitor and display real-time environmental temperature and humidity data

Light
Acquire the real-time luminance data and check the lighting status

Specification

  AM107 AM104
Hardware Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP
Power Supply 2 × alkaline AA batteries or powered via USB type-C
Battery Lifetime 0.9 years (SF7) 1.5 years (SF7)
0.7 years (SF10) 1.2 years (SF10)
1.1 years (VOC disabled,SF7)
0.9 years (VOC disabled,SF10)
Sensors Temperature
Range -20°C to + 70°C (operating temperature for screen: 0-45°C)
Accuracy ±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C)
Humidity
Range 0% to 100% RH
Accuracy ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%)
PIR
Detection Area 94 ° Horizontal, 82 ° Vertical
Detection Distance 5 m
Light
Range 60000 lux (Visible + IR, IR)
Accuracy ±30%
CO2
Range 400 – 5000 ppm N/A
Accuracy ±30 ppm or ±3 % of reading
TVOC
Range 0 – 60000 ppb (total VOC) N/A
Accuracy ±15 % of reading
Long-term Stability 1.3 % accuracy drift per year
Barometric Pressure
Range 300 – 1100 hPa (-40°C – 85°C) N/A
Accuracy ±1 hPa

Magnetic Contact Switch • Security Alarm for Door Opening • IP67 Waterproof • LoRaWAN® Wireless • 5/10 Years Battery Life • NFC for Configuring
Water Level Monitoring • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Temperature detection range (-200 ~ 50°C) • Extreme Temperature Measurement • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life

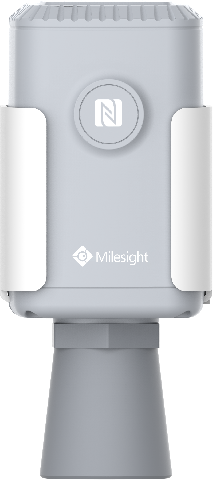

Distance & Level Measurement (0,5 ~ 10 m) • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Distance & Level Measurement (0,3 ~ 5 m) • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life

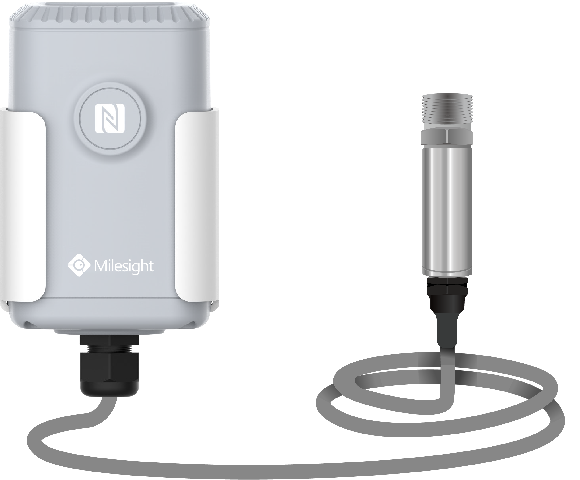

Pipe Pressure Sensor • Applicable to Various Pipe • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life

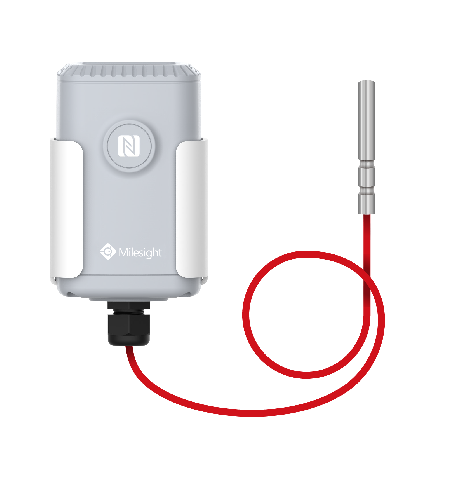

Temperature detection range (-50 ~ 800°C) • Extreme Temperature Measurement • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Temperature & Humidity Sensor • IP67 Waterproof • LoRaWAN® Wireless • 5/10 Years Battery Life • NFC for Configuring
Water Level Monitoring • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Water Leak Detection • Probe & Rope Type • IP67 Waterproof • LoRaWAN® Wireless • 5/10 Years Battery Life • NFC for Configuring
Soil Conditions Monitoring (soil moisture, temperature and Electrical Conductivity Sensor) • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years ...

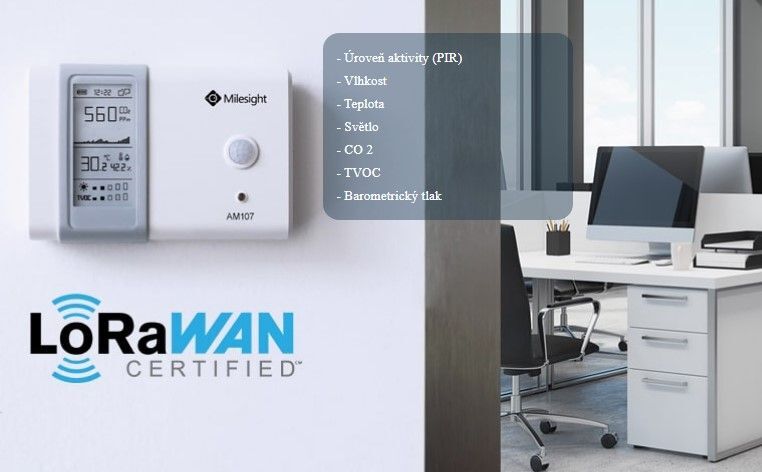

Activity Level (PIR) • Humidity • Temperature • Light • CO2 • TVOC • Barometric Pressure
