EM500-PP - Pipe Pressure Sensor

EM500-PP - Pipe Pressure Sensor
EM500-PP - Pipe Pressure Sensor
EM500-PP - Pipe Pressure Sensor
Basic information:
Pipe Pressure Sensor • Applicable to Various Pipe • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Order code:EM500-PP-868M PN:G1/2M-4842
Internal code:E002-1001

Availability:
on order

Quantity:
Add to cart

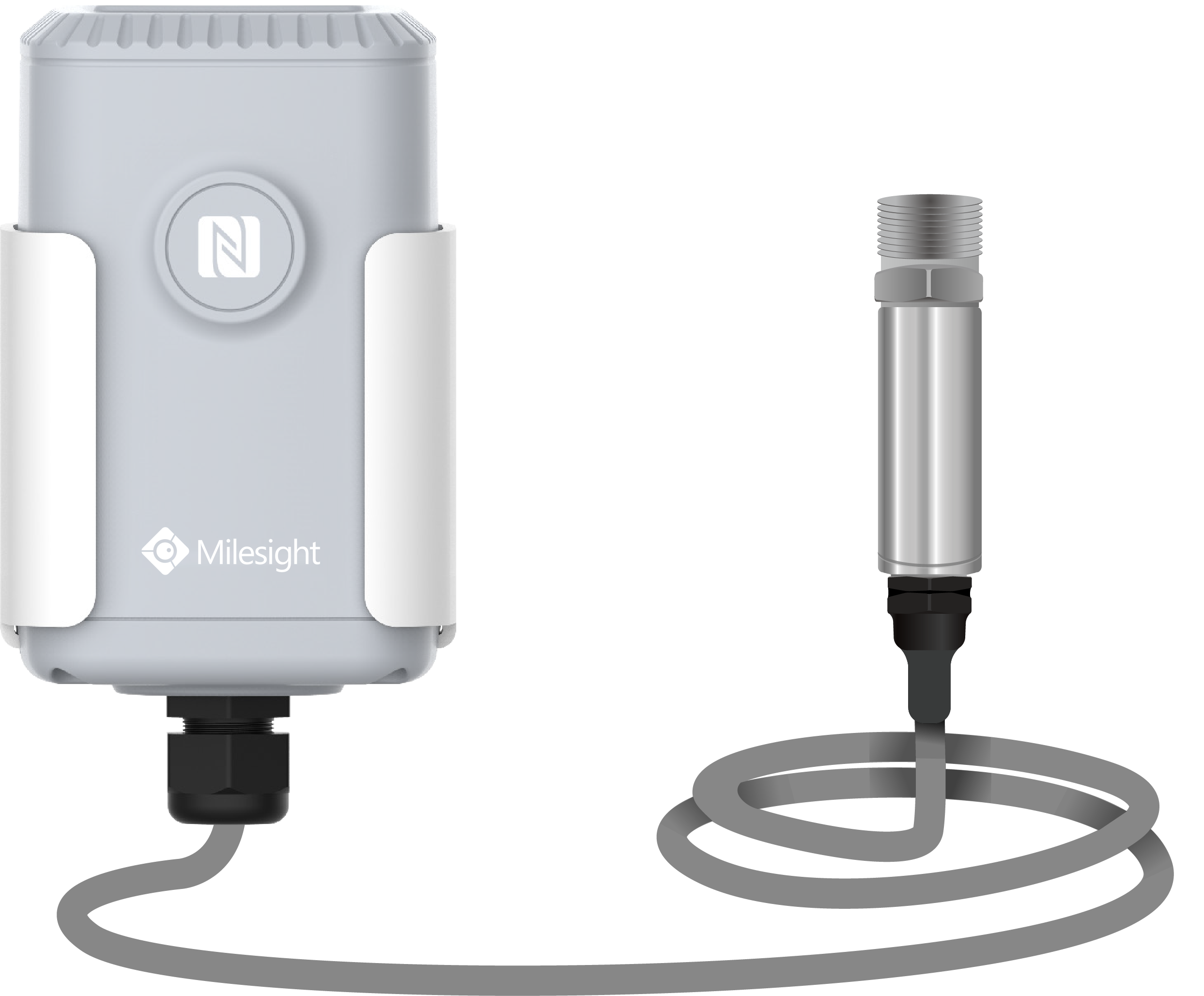

EM500-PP - Pipe Pressure Sensor

EM500-PP sensor is designed for measuring pressures from liquids and gases in order to realize the pressure monitoring of tank level or leakage in pipes.

  • No Leakage Danger
  • Shock-resistant and Vibration-resistant
  • Measuring Accuracy is less than ±0.% FS
  • Temperature Compensation for High Accuracy
  • Applicable to Various Pipe
  • LoRaWAN® Wireless
  • Easy Configuration via NFC
  • 10 Years Battery Life

Specification

LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Range 0 ~ 1600 kPa (16 Bar)
Accuracy ±0.5% FS
Resolution 1 kPa (0.01 Bar)
Physical Characteristics Power Supply 19000 mAh Li-SOCL2 battery
Operating Temperature -30°C to +70°C
Ingress Protection IP66
Dimension 105.4× 71 × 69.5 mm
Mounting DIN rail, wall
