> LoRaWAN IoT > EM500-SWL - Submersible Water Level Sensor (3 m)

EM500-SWL - Submersible Water Level Sensor (3 m)

EM500-SWL - Submersible Water Level Sensor (3 m)
EM500-SWL - Submersible Water Level Sensor (3 m)
Basic information:
Water Level Monitoring • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Order code:EM500-SWL-868M PN:L003
Internal code:E002-0997

Availability:
on order

Quantity:
Add to cart

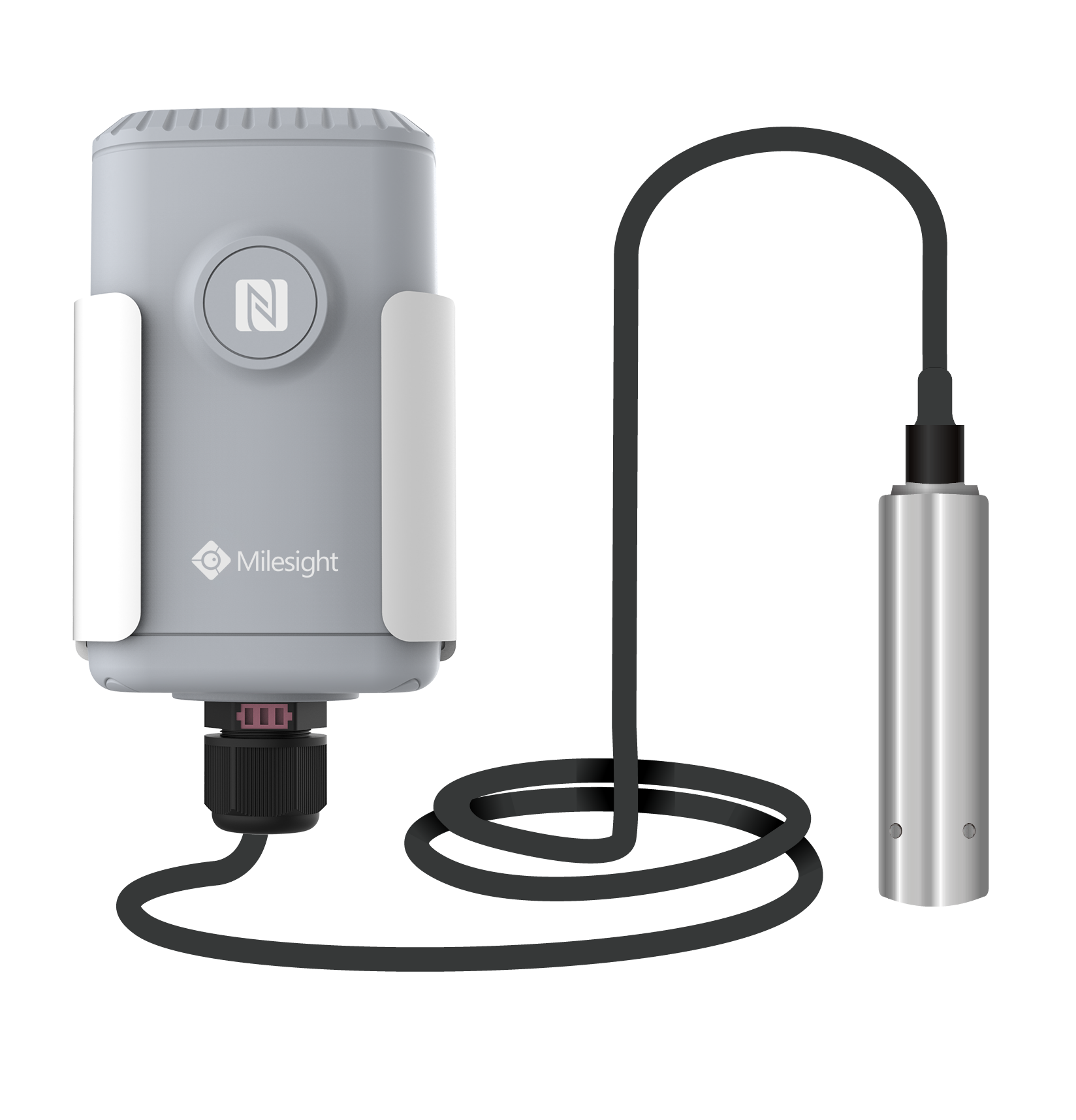

EM500-SWL - Submersible Water Level Sensor (3 m)

EM500-SWL is designed to measure the tank level or open water applications while fully submerged in liquid. It is robust and sealed to prevent corrosion and failure.

  • Water Level Monitoring
  • Customizable measuring range up to 200 m
  • Submersible pressure sensor not affected by foam, wind, or rain
  • IP67 full sealed plastic waterproof design (Transceiver is not included)
  • Measuring medium: water (customizable for oil and other non-corrosive media)
  • LoRaWAN® Wireless
  • Easy Configuration via NFC
  • 10 Years Battery Life

Specification

LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Range 3m/5m/10m H2O (Customizable up to 200m)
Accuracy ±0.5% FS
Physical Characteristics Probe Length At least should be 1-1.5m longer than measuring range
Power Supply 19000 mAh Li-SOCL2
Operating Temperature Transceiver: -30°C to +70°C Pressure Sensor: -10°C to +60°C
Ingress Protection IP66 (IP67 as required)
Dimension 105.4 × 71 × 69.5 mm (Probe and cable are not included)
Mounting DIN rail, wall
