> LoRaWAN IoT > EM500-LGT - Light Sensor

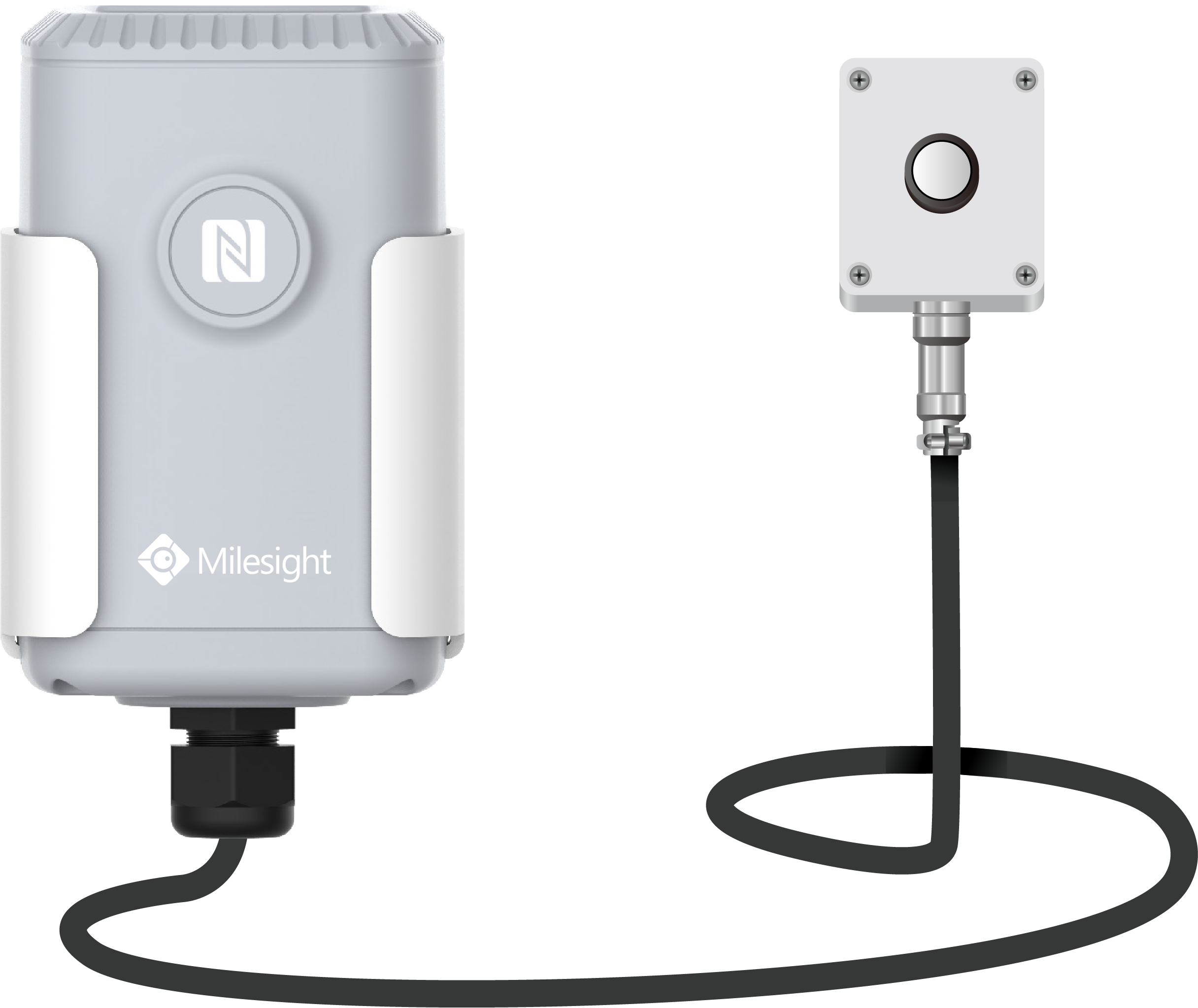

EM500-LGT - Light Sensor

EM500-LGT - Light Sensor
EM500-LGT - Light Sensor
Basic information:
Illuminance Measurement • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Order code:EM500-LGT-868M PN:RY
Internal code:E002-1000

Availability:
on order

Quantity:
Add to cart

EM500-LGT - Light Sensor

EM500-LGT is designed for ambient light intensity detection in harsh environments. It is useful in many applications, such as brightness control, security, horticulture, floriculture and so on.

  • Illuminance Measurement
  • LoRaWAN® Wireless
  • Easy Configuration via NFC
  • 10 Years Battery Life
  • Measuring ranges from 0 to 100,000 lux
  • Fast Response 1 second
  • 10-year battery life with low maintenance cost
  • Accurately detect any light changes

Specification

LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Range 0 ~ 100000 lux
Accuracy ±3%
Resolution 1 lux
Physical Characteristics Power Supply 19000 mAh Li-SOCL2
Operating Temperature -30°C to +60°C
Ingress Protection Transceiver: IP66 (IP67 as required) Light Sensor: IP65
Dimension 156.1 × 71 × 69.5 mm
Mounting DIN rail, wall, pole
