> LoRaWAN IoT > EM500-PT100-T800 - Industrial Temperature Sensor

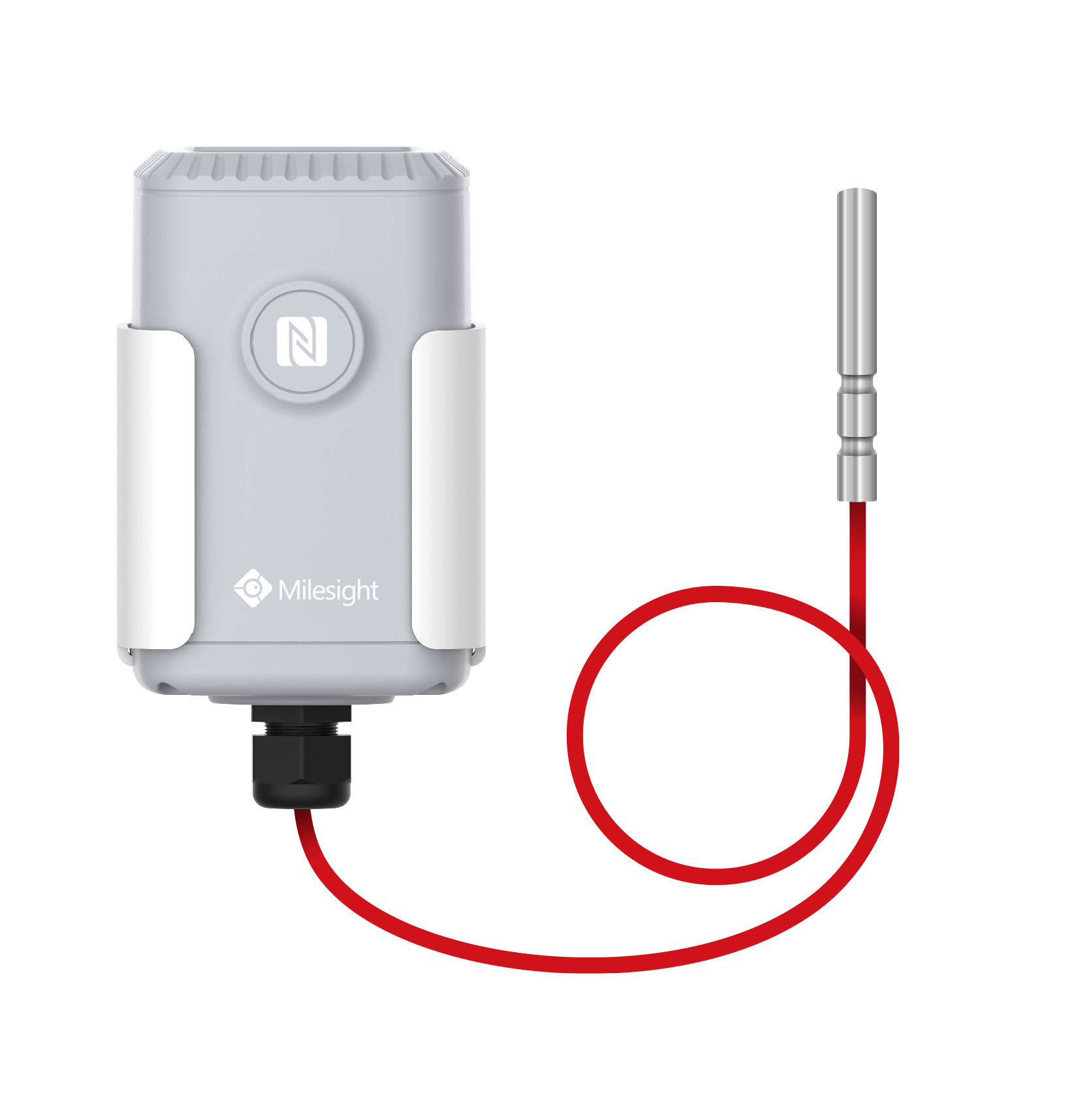

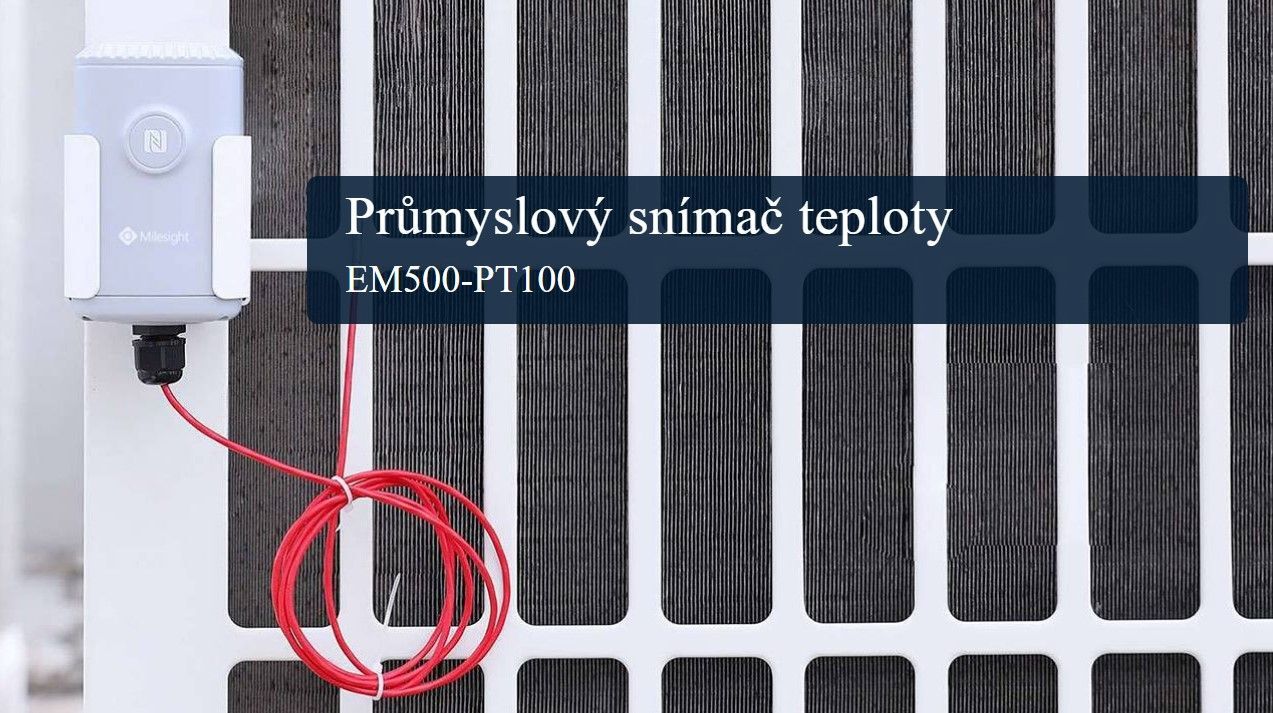

EM500-PT100-T800 - Industrial Temperature Sensor

EM500-PT100-T800 - Industrial Temperature Sensor
EM500-PT100-T800 - Industrial Temperature Sensor
EM500-PT100-T800 - Industrial Temperature Sensor
Basic information:
Temperature detection range (-50 ~ 800°C) • Extreme Temperature Measurement • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Order code:EM500-PT100-868M PN:T800
Internal code:E002-0996

Availability:
on order

Quantity:
Add to cart

EM500-PT100-T800 - Industrial Temperature Sensor

EM500-PT100 equips with a highly accurate temperature sensor PT100, the platinum resistance temperature detector offers much most stable and precise temperature measurement from -200 to 800°C.

EM500-PT100 T800

  • Vibration-resistant construction
  • In three-wire circuit
  • Temperature detection range (-50 ~ 800°C)
  • Terminal heads available in straight tube, armoured, SMT, threaded, magnet

Specification

LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement Range EM500-PT100-T200: -50 °C to +200 °C EM500-PT100-T500: -50 °C to +500 °C EM500-PT100-T800: -50 °C to +800 °C (Customizable from -200 °C to +800 °C)
Accuracy ±0.5°C
Resolution 0.1°C
Physical Characteristics Probe Length 1.5 m (Customizable)
Probe Type Straight tube (Bolt-on ring, magnet and other types customizable)
Power Supply 19000 mAh Li-SOCl2
Operating Temperature -30°C to +70°C
Ingress Protection IP67
Dimension 105.4 × 71 × 69.5 mm (Sensor and cable are not included)
Mounting DIN rail, wall, pole mounting
