> LoRaWAN IoT > EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor

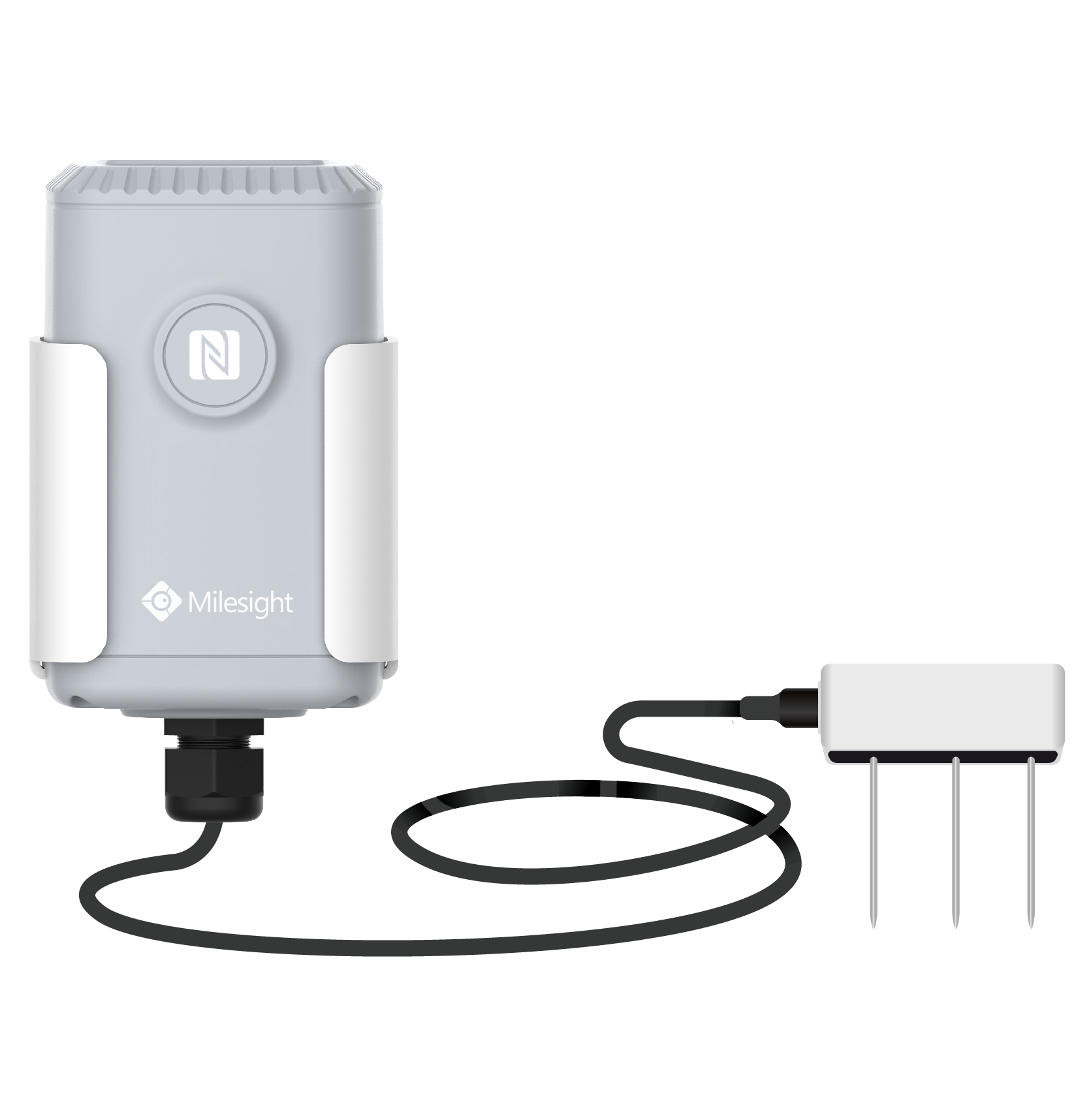

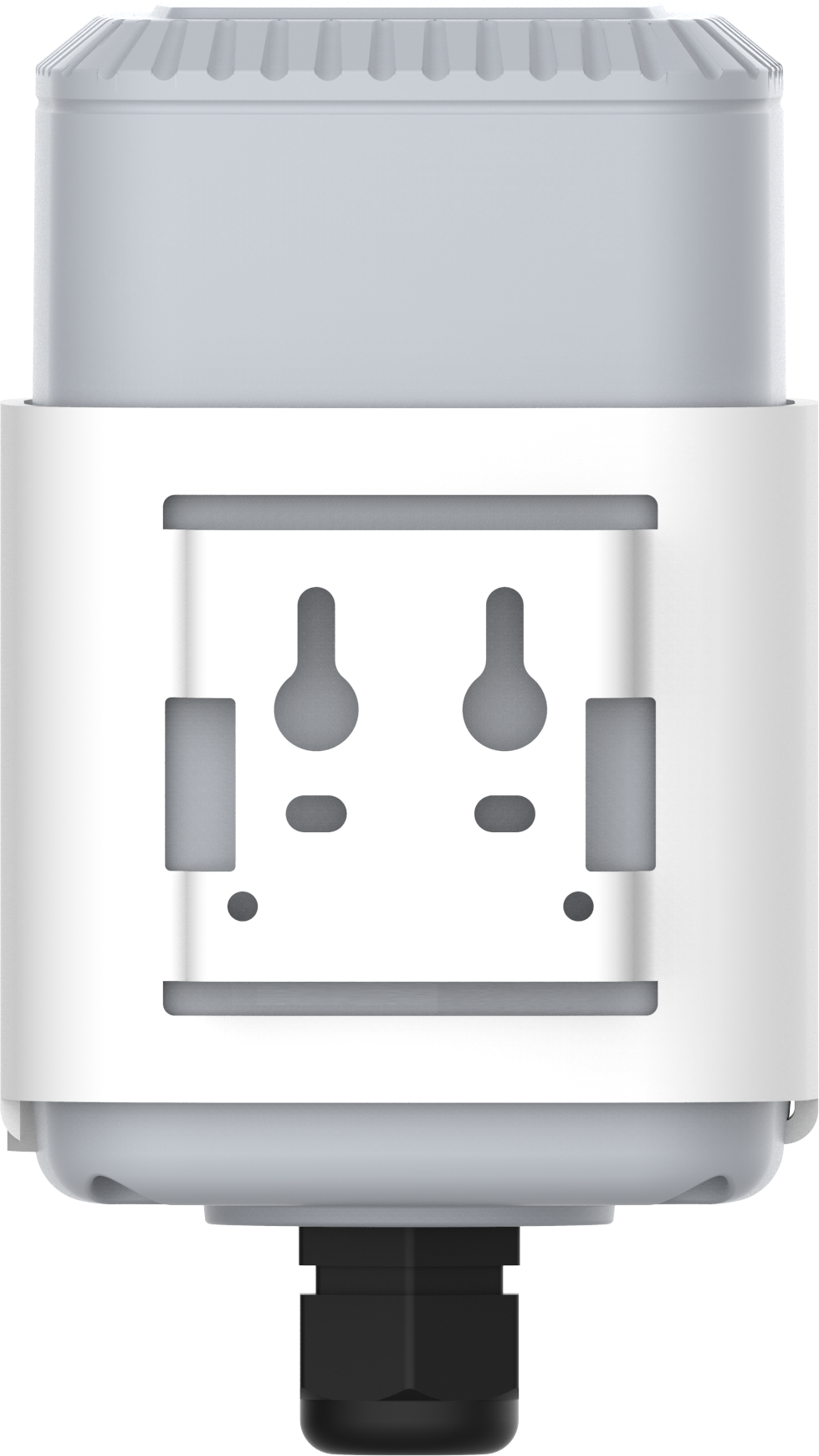

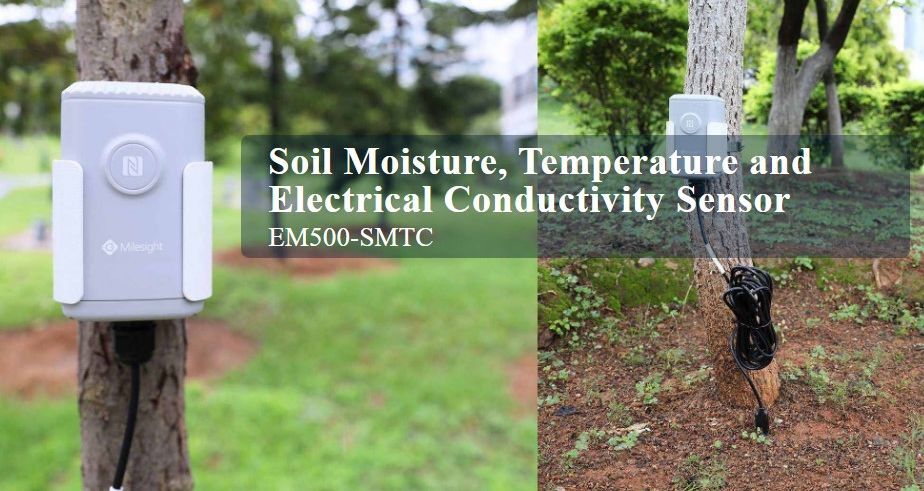

EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor

EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor
EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor
EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor
EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor
Basic information:
Soil Conditions Monitoring (soil moisture, temperature and Electrical Conductivity Sensor) • LoRaWAN® Wireless • Easy Configuration via NFC • 10 Years Battery Life
Order code:EM500-SMTC-868M PN:MEC20
Internal code:E002-1077

Availability:
on order

Quantity:
Add to cart

EM500-SMTC - Soil Moisture, Temperature and Electrical Conductivity Sensor

EM500-SMTC provides an external probe for receiving accurate and instantaneous information on soil moisture content, temperature, and electrical conductivity, it is an important tool for anyone involved with soil.

  • Research-grade accuracy in multiple soil media
  • Easy installation into undisturbed soil
  • Rapid monitoring of growing conditions

Smart Soil Monitoring

Over the past few years, the applications of massive IoT deployed in soil monitoring, for example, greenhouse, have accelerated the evolution of digital farming. The data collection of environmental factors such as temperature, humidity, soil content, wind speed, rainfall, nitrogen, phosphorus, and potassium has composed an important part in soil monitoring.

Specification

Model EM500-SMTC EM500-SMT
Moisture 0 ~100% RH 0 ~ 100% RH
2% RH (0 ~ 50%), 3% RH (50 ~ 100%) ±2% RH
0.01% RH 0.01% RH
Temperature -40 ~ 80°C /
±0.5°C
0.1°C
Electrical Conductivity 3% RH (50 ~ 100%) /
±3% (0 ~ 10000 µS/cm), ±5% (10000 ~ 20000 µS/cm)
10 µS/cm (0 ~ 10000 µS/cm), 50 µS/cm (10000 ~ 20000 µS/cm)
Frequency CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923
Power Supply Built-in 19000 mAh Li-SOCl2 battery, up to 10 years service life
Ingress Protection IP66 (Transceiver, IP67 as required)
Operating Temperature -30 ~ 70°C (Transceiver), -40 ~ 85°C (Sensor) -30 ~ 70°C (Transceiver), -40 ~ 60°C (Sensor)
