> LoRaWAN IoT > EM300 - Magnetic Contact Switch

EM300 - Magnetic Contact Switch

EM300 - Magnetic Contact Switch
EM300 - Magnetic Contact Switch
EM300 - Magnetic Contact Switch
Basic information:
Magnetic Contact Switch • Security Alarm for Door Opening • IP67 Waterproof • LoRaWAN® Wireless • 5/10 Years Battery Life • NFC for Configuring
Order code:EM300-MCS-868M
Internal code:E002-0989

Availability:
on order

Quantity:
Add to cart

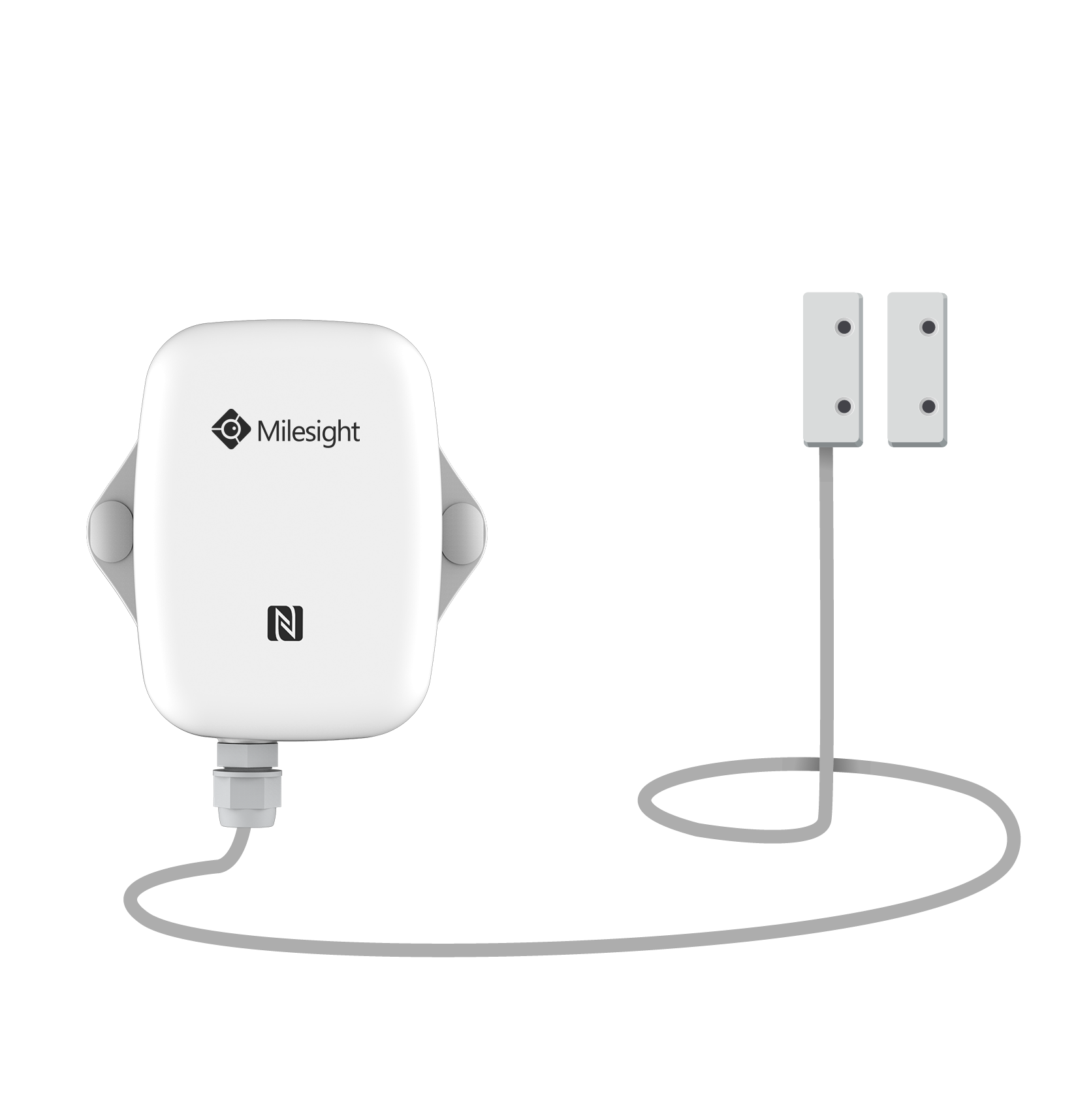

EM300 - Magnetic Contact Switch

Magnetic Contact Switch

  • Security Alarm for Door Opening
  • IP67 Waterproof
  • LoRaWAN® Wireless
  • 5/10 Years Battery Life
  • NFC for Configuring

Alarming for Unauthorized Entry

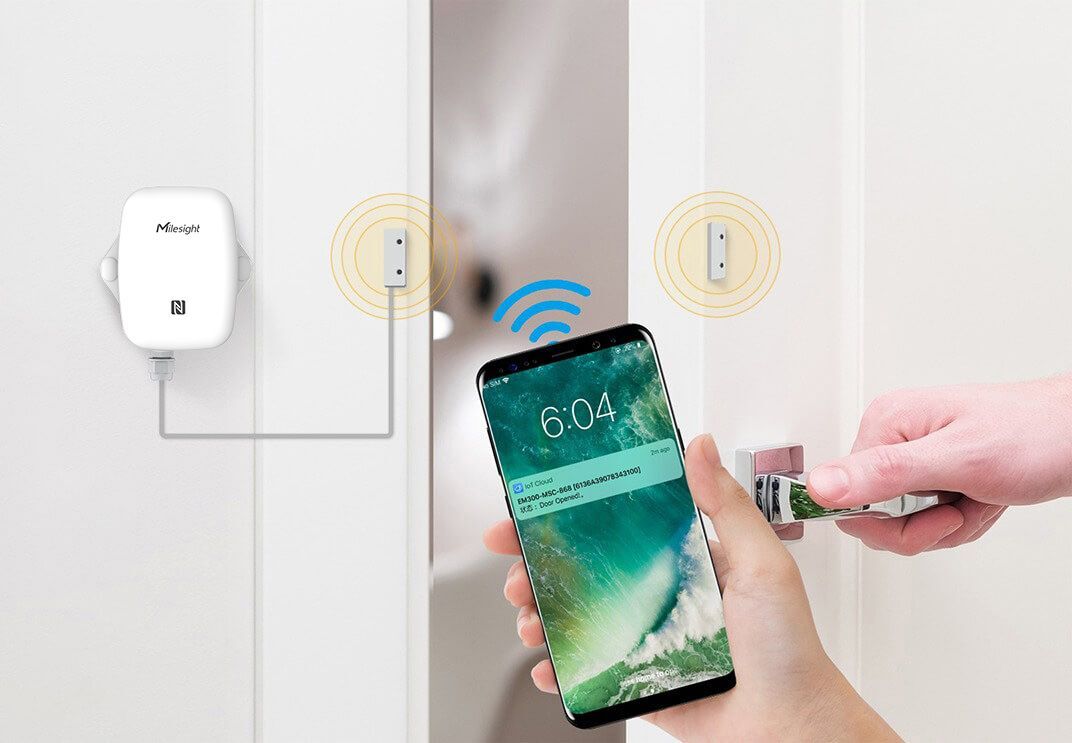

The EM300-MCS magnetic contact switch can be mounted to any door or window to detect an opening or closing event. It adds physical security monitoring to your location by alarming for intrusion or unauthorized entry to your monitored conditions.

Temperature & Humidity Monitoring

  • -30°C to 70°C
  • 0% to 100% RH

EM300-MCS built-in Sensirion industrial-grade digital sensor, providing ±0.3℃ high accuracy of temperature and ±3% RH of humidity

Specification

LoRaWAN® Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Sensing Lead Cable 1007UL #22AWG 260mm
Type Normally closed
Distance of magnets 20-30mm
Distance of holes 22mm
Temperature Measuring Range -30°C to +70°C
Accuracy 0 ~ 70°C: ±0.3°C
-30 ~ 0°C: ±0.6°C
Resolution 0.1°C
Humidity Measuring Range 0%~100% RH
Accuracy ±3%(10~90%RH)
±5%(Other ranges)
Resolution 0.10%
Physical Characteristics Power Supply ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery Life ≧ 5 years ( for 1 battery)
Operating Temperature -40°C to 70°C
Ingress Protection IP67
Dimension 88 × 87 × 27 mm
Mounting Wall (screws or 3M adhesives)
